Home
>>
Acura
>>
1992
>>
Vigor L5-2451cc 2.5L SOHC G25A4 FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Under-Dash Fuse Box
Under-Dash Fuse Box

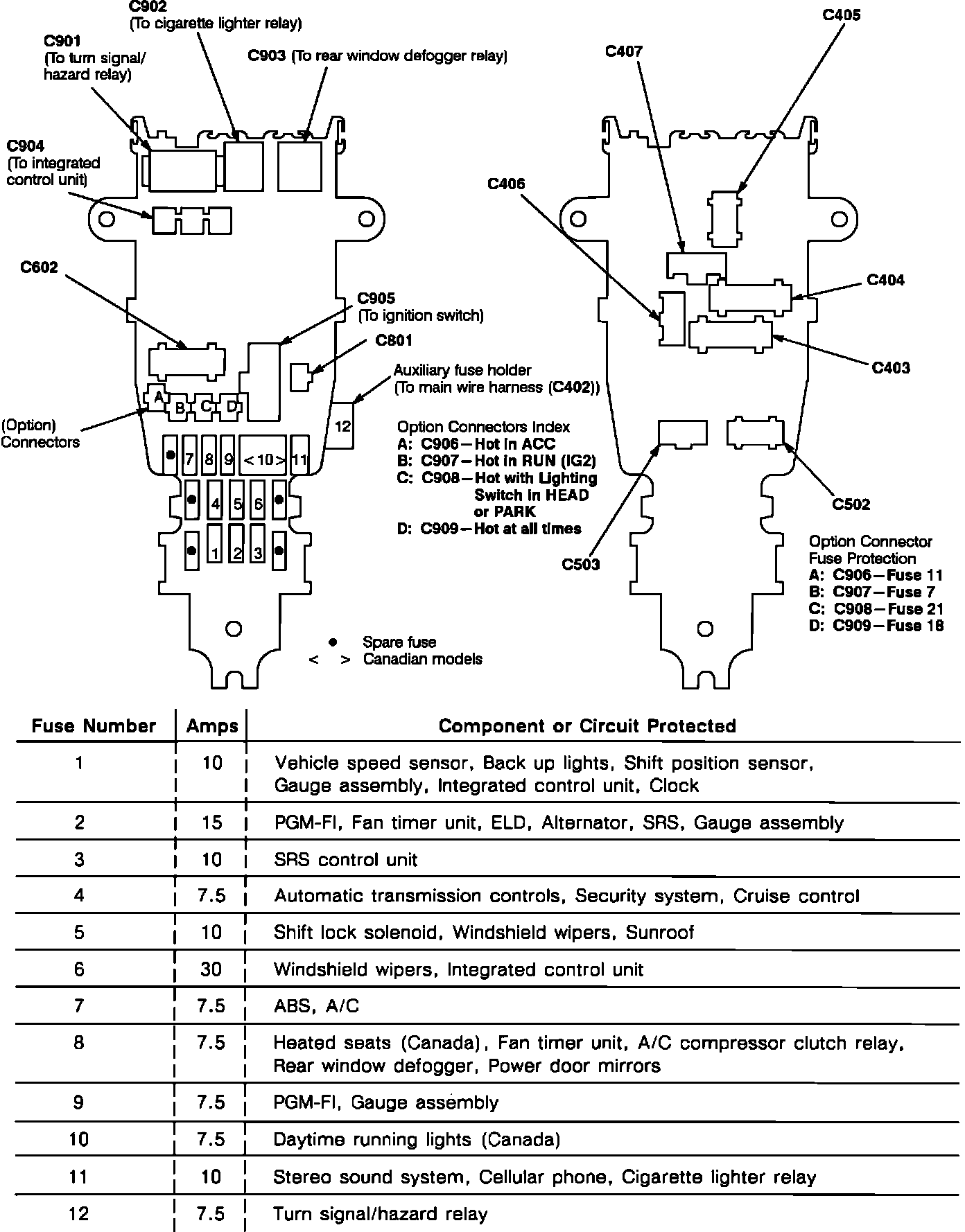

Fuse Panel Details: Under-dash Fuse/Relay Box:
