Left Side Engine Compartment

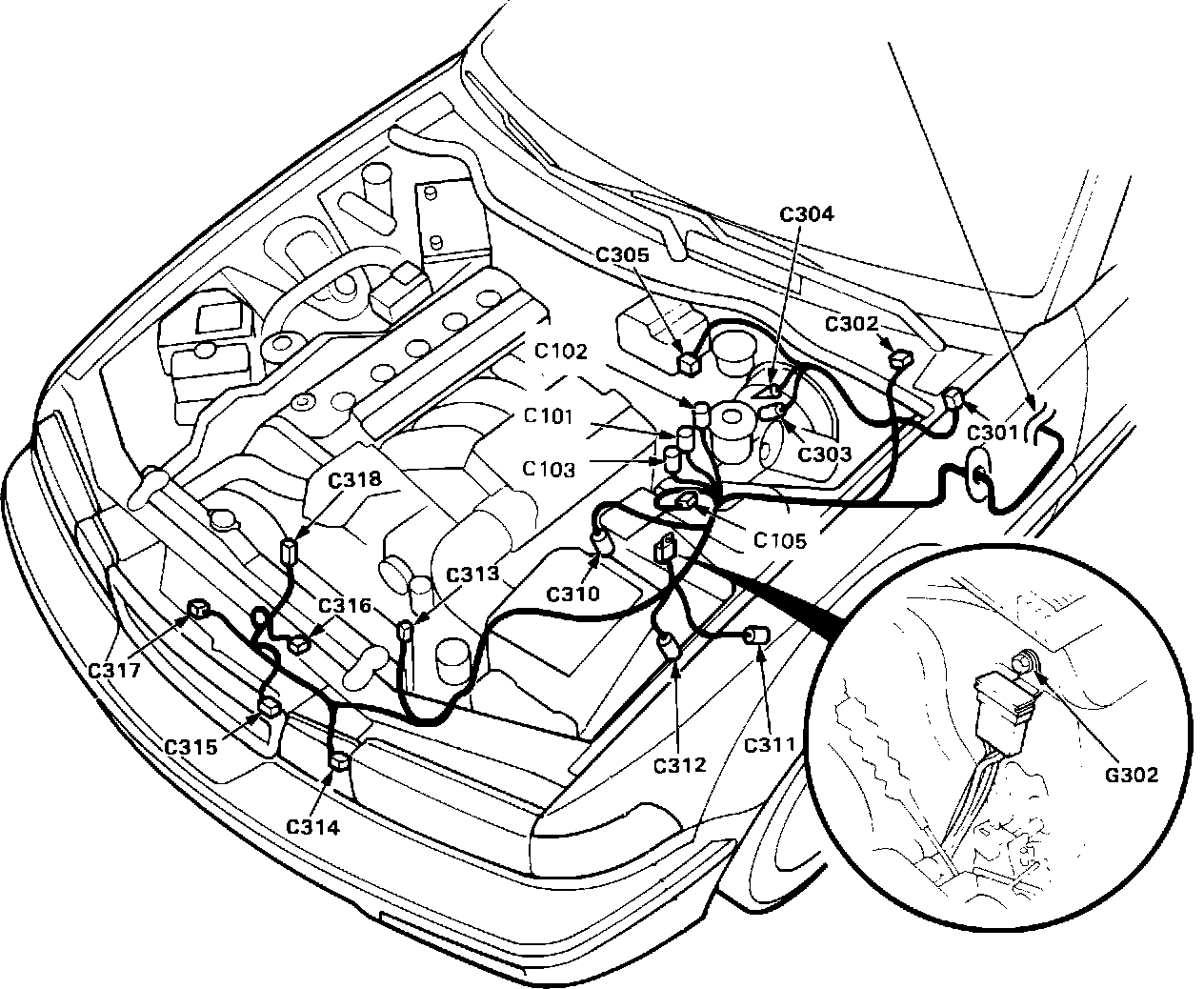

Connector Locations And Wire Harness Routing: Main (Left Side Engine Compartment Branch):
