Acura
>>
1993
>>
Vigor L5-2451cc 2.5L SOHC G25A4 FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Under-Dash Fuse Box
Under-Dash Fuse Box

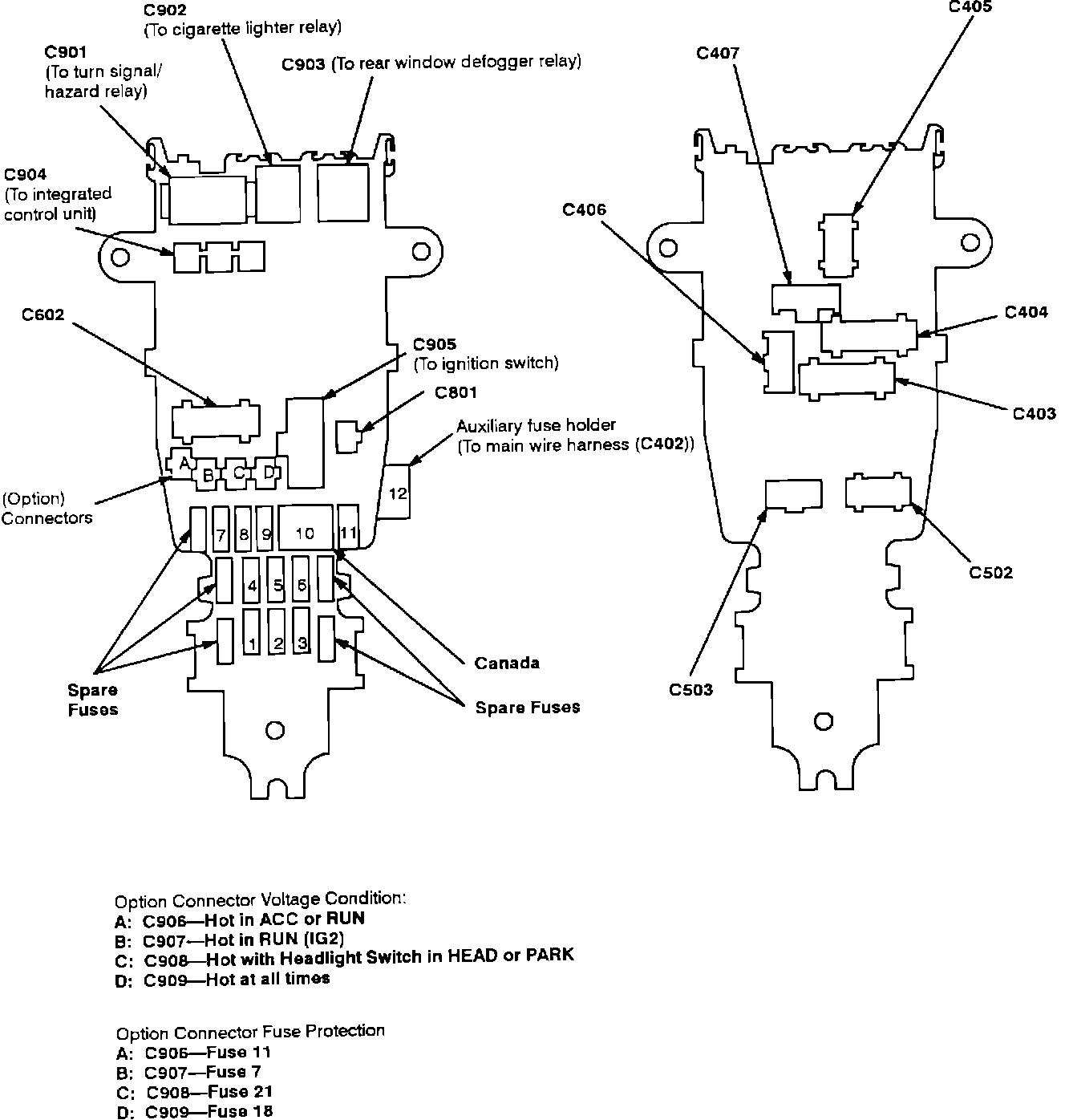

Under-Dash Fuse/Relay Box, Behind Left Kick Panel:

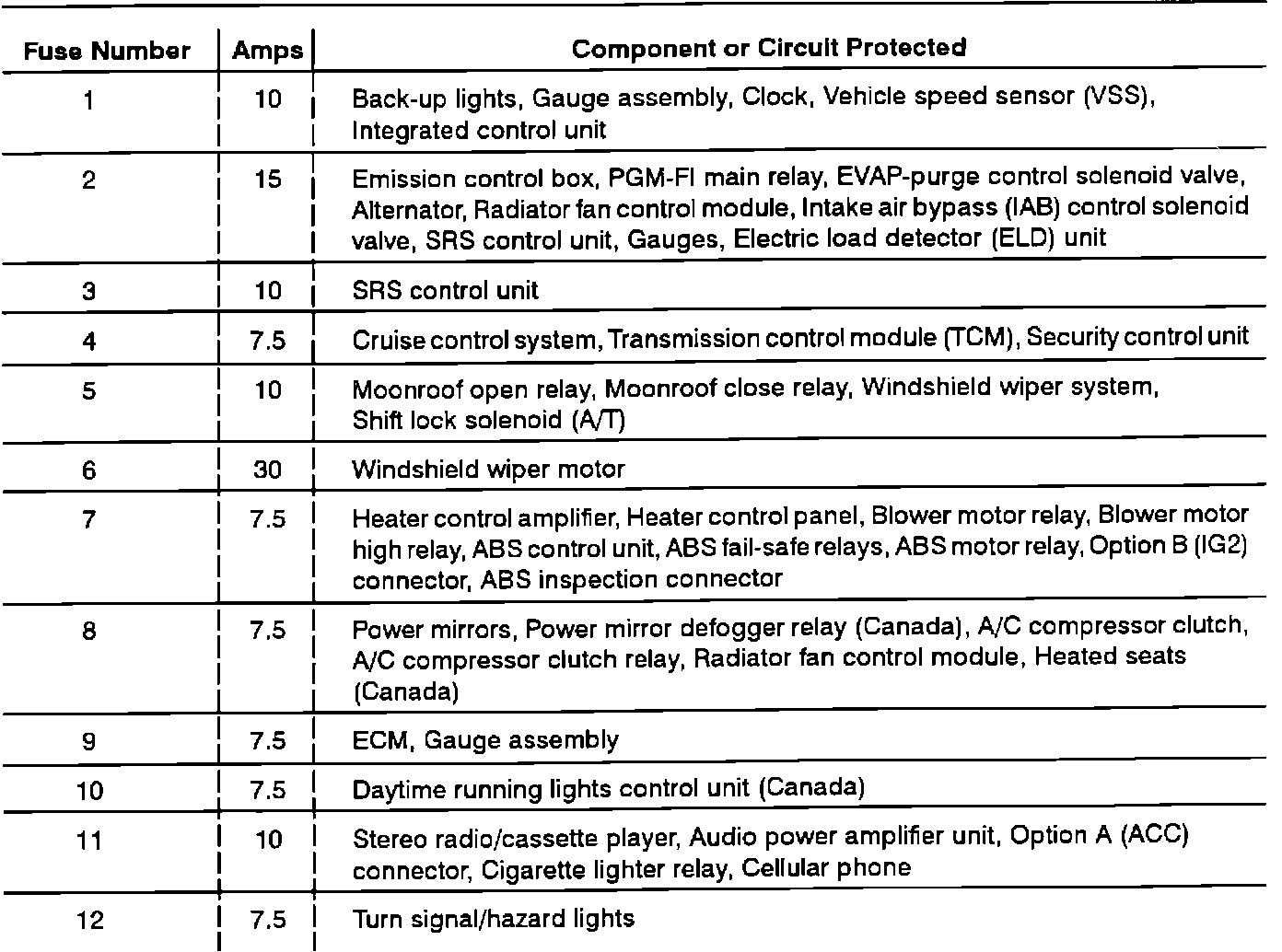

Fuses And Circuits Protected:
Under-Dash Relay Box:
