Security Siren Test

1. Remove the front bumper.

Security Siren Test:

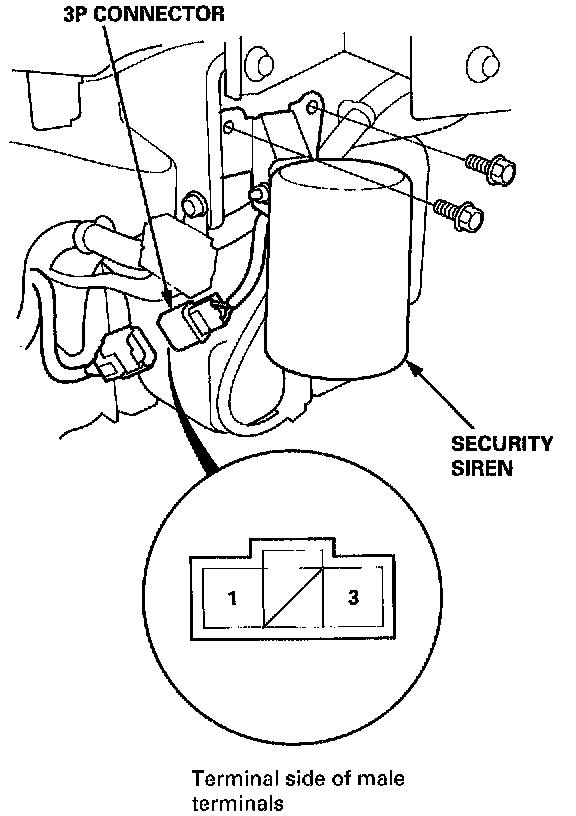

2. Disconnect the 3P connector from the siren.
3. Remove the siren.
4. Test the siren by connecting battery power to the No. 1 terminal and grounding to the No. 3 terminal. The siren should sound.
5. If the siren fails to sound, replace it.
