Home >> Acura >> 1997 >> Integra GS-R Coupe L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Clutch, A/T >> 2ND/4TH Clutch Assembly

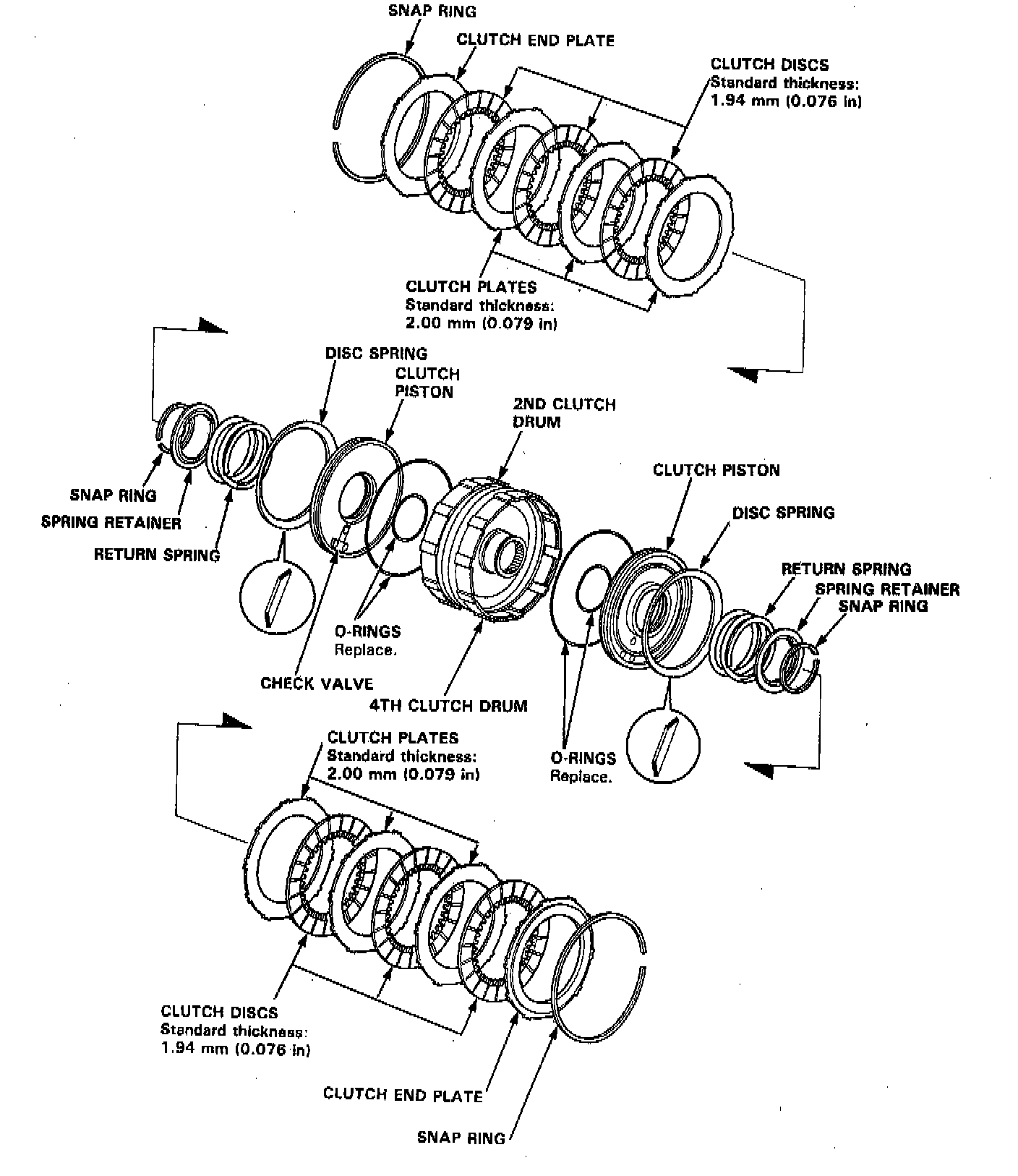

2ND/4TH Clutch Assembly
