Starter Solenoid Test


STARTER SOLENOID / TEST

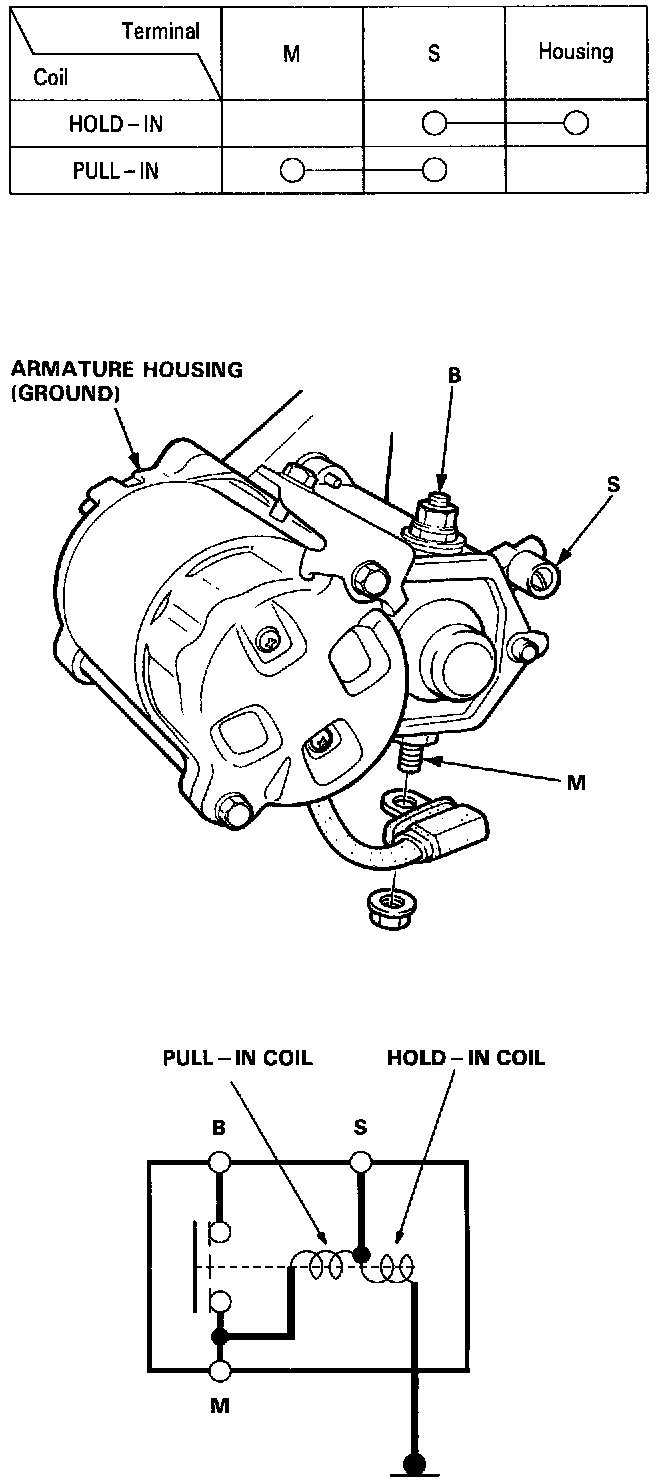

Check for continuity between the terminals according to the table.
