Home >> Acura >> 2001 >> CL TYPE S V6-3.2L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Throttle Control Relay >> Diagrams

Throttle Control Relay: Diagrams

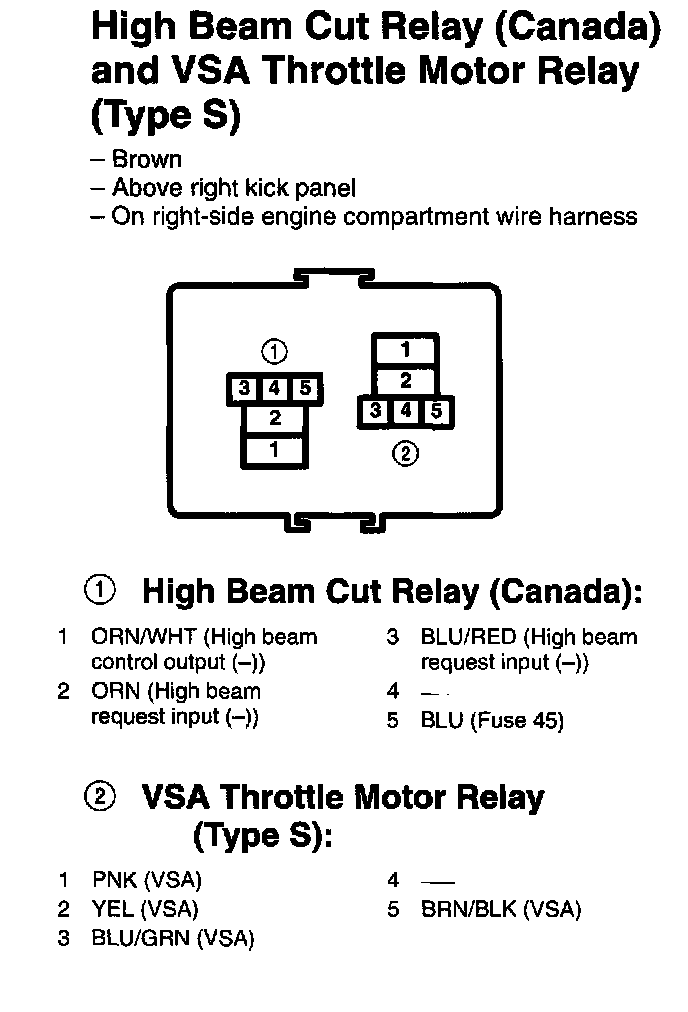

High Beam Cut Relay (Canada) and VSA Throttle Motor Relay (Type S):
