Acura
>>
2002
>>
3.5RL V6-3474cc 3.5L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Emergency Contact Button
>>
Locations
>>
Onstar Control Unit
Onstar Control Unit

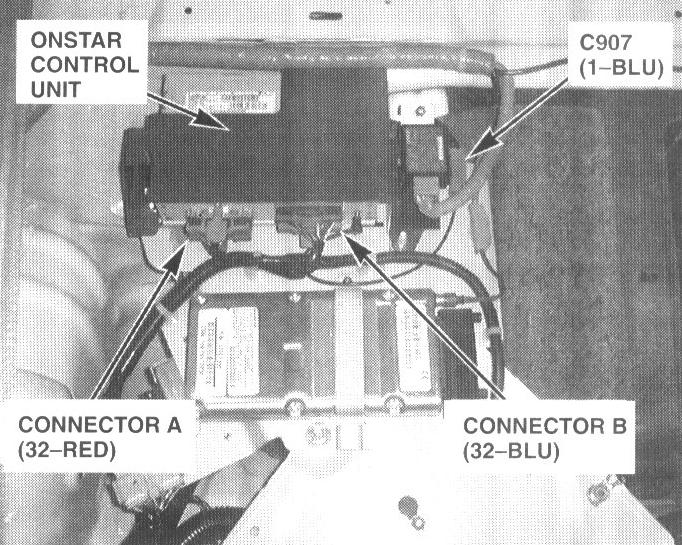

196. Behind Right Side of Rear Seat (USA):

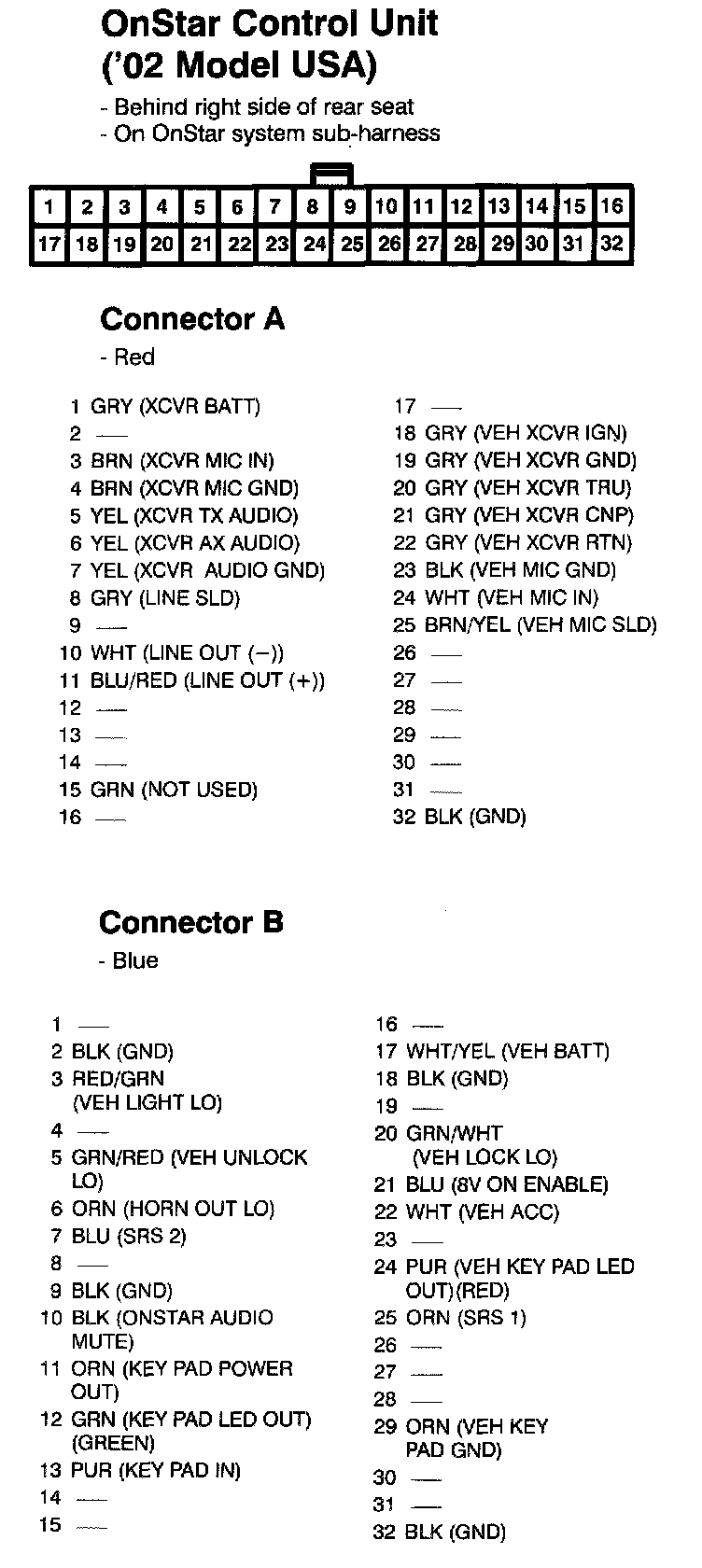

OnStar Control Unit (USA) Connectors A And B:
