Pump Motor Replacement

Pump Motor Replacement

WARNING The modulator unit contains high-pressure brake fluid. Be sure to relieve system pressure unit before removing the pump motor.

1. Relieve system pressure.
2. Remove the modulator unit.

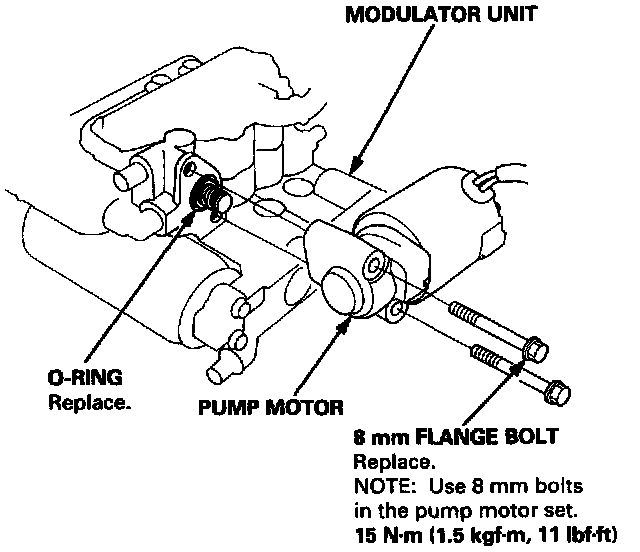

3. Replace the pump motor.
4. Perform modulator unit installation.
