Rear Air Outlet

Removal

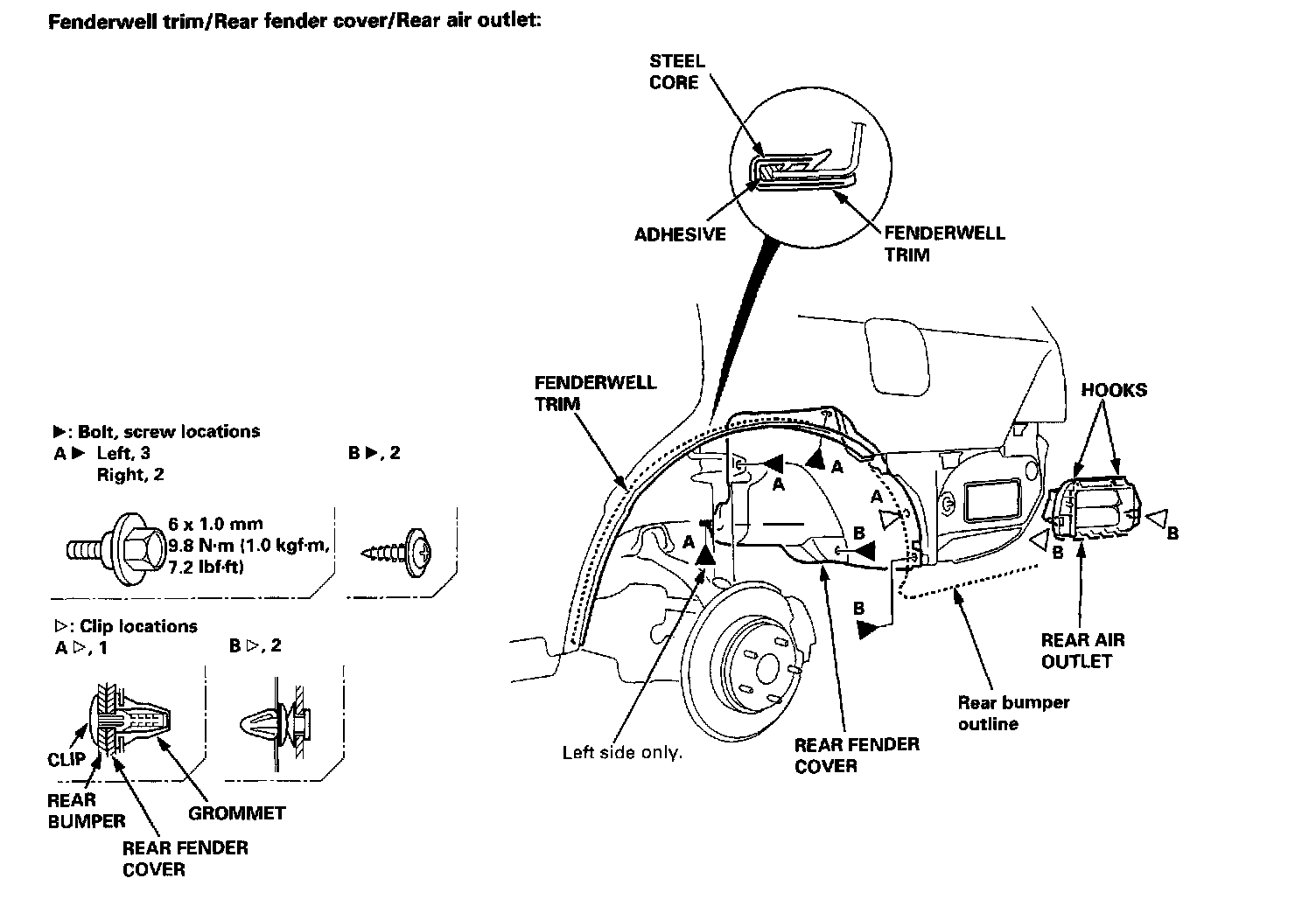

Fenderwell trim/Rear fender cover/Rear air outlet:

NOTE:
- Take care not to bend the fenderwell trim.
- Before installing the fenderwell trim, clean the body bonding surface with a sponge dampened in alcohol.
- After cleaning, keep oil, grease, or water from gening on the surface.
- To remove the rear fender cover, first remove the rear wheel.
- To remove the rear fender cover, first pull out the front edge of the rear bumper.
- To remove the rear air outlet, first remove the rear bumper.
