Side Air Vent

Component Removal/Installation

CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

NOTE: Take care not to scratch the dashboard and related parts.

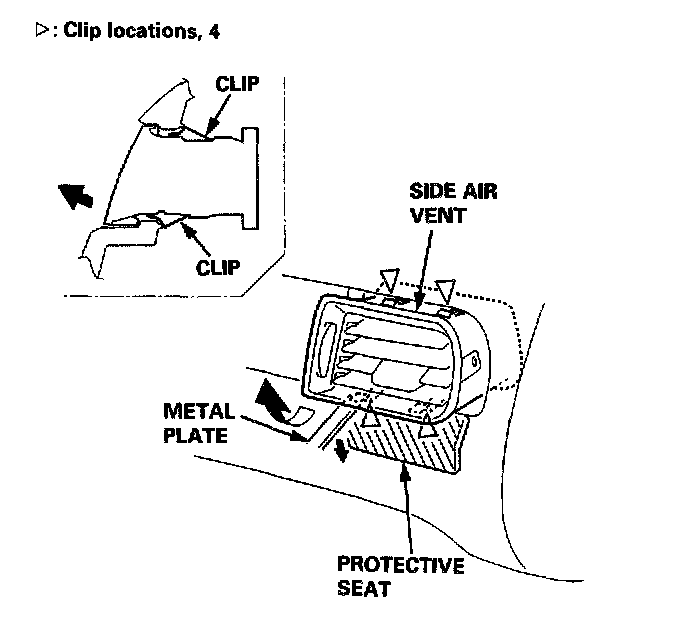

Side air vent (passenger's):
Insert a flat metal plate under the clips, then detach the clips by prying up. Pull the side air vent backward while prying the clips.
