Side Defogger Vent Trim

Component Removal/Installation

CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

NOTE: Take care not to scratch the dashboard and related parts.

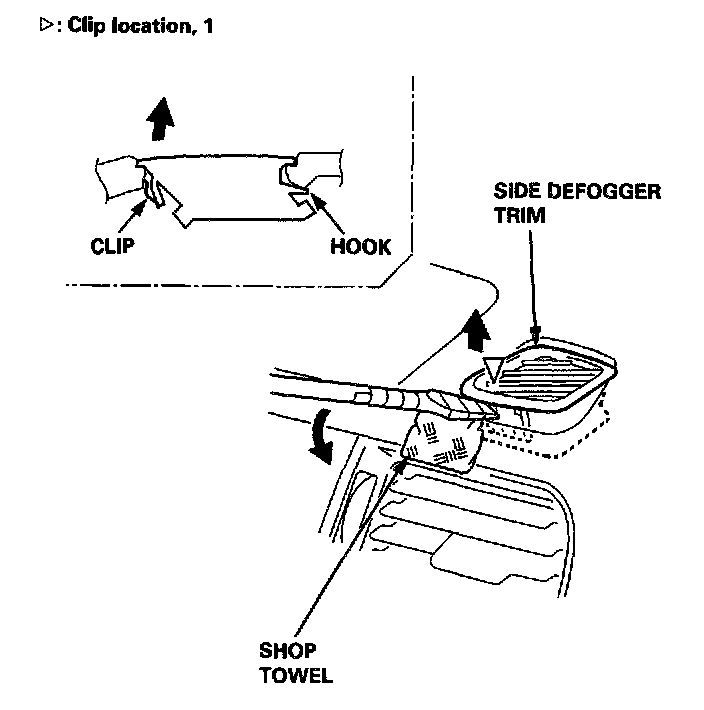

Side defogger trim:
Carefully pry the side defogger trim at the rear edge, then remove it.
