Fuel Supply Line: Testing and Inspection

Fuel Line Inspection

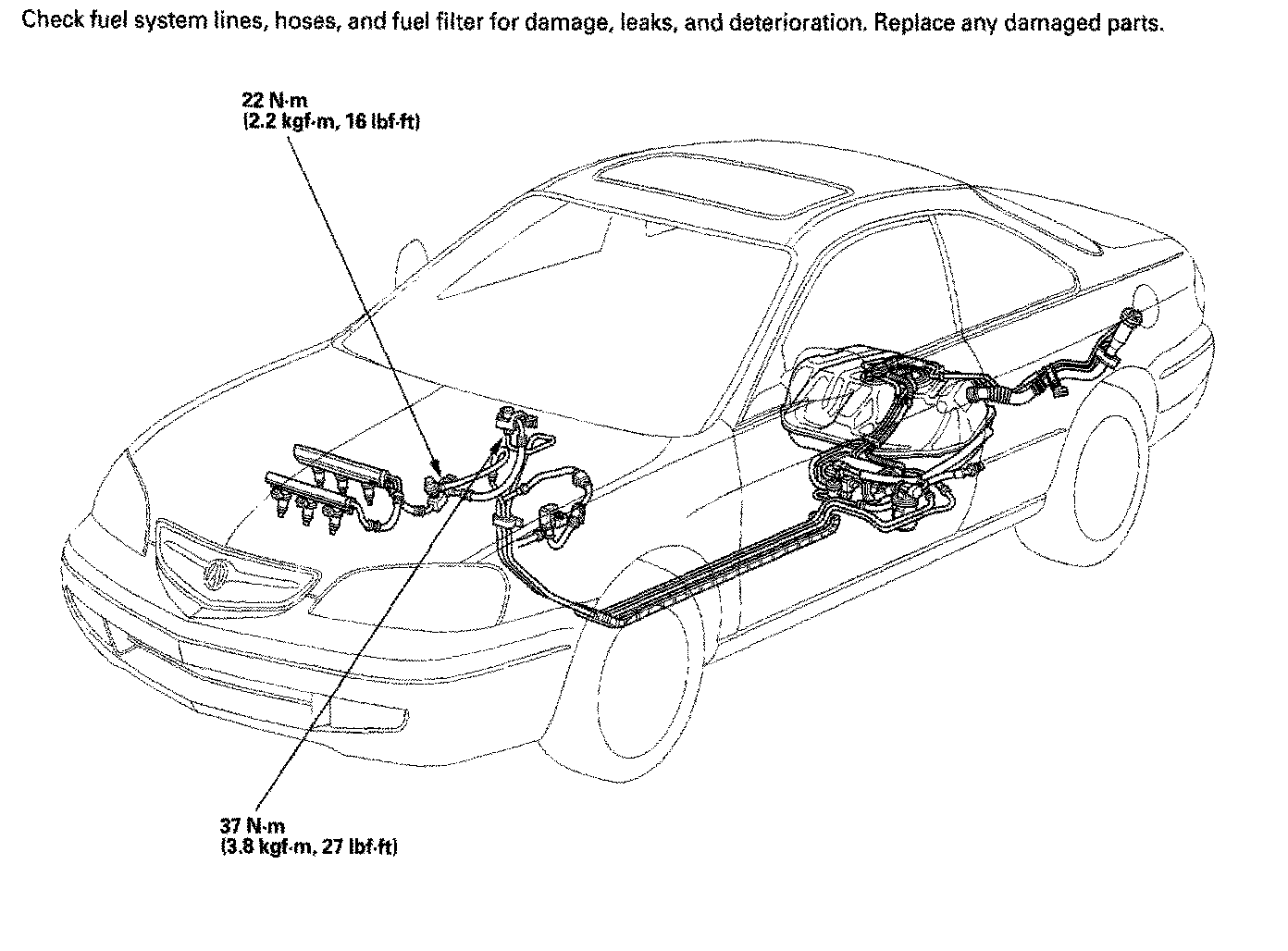

Fuel Line Inspection Part 1:




Check fuel system lines, hoses and fuel filter for damage, leaks, and deterioration. Replace any damaged parts

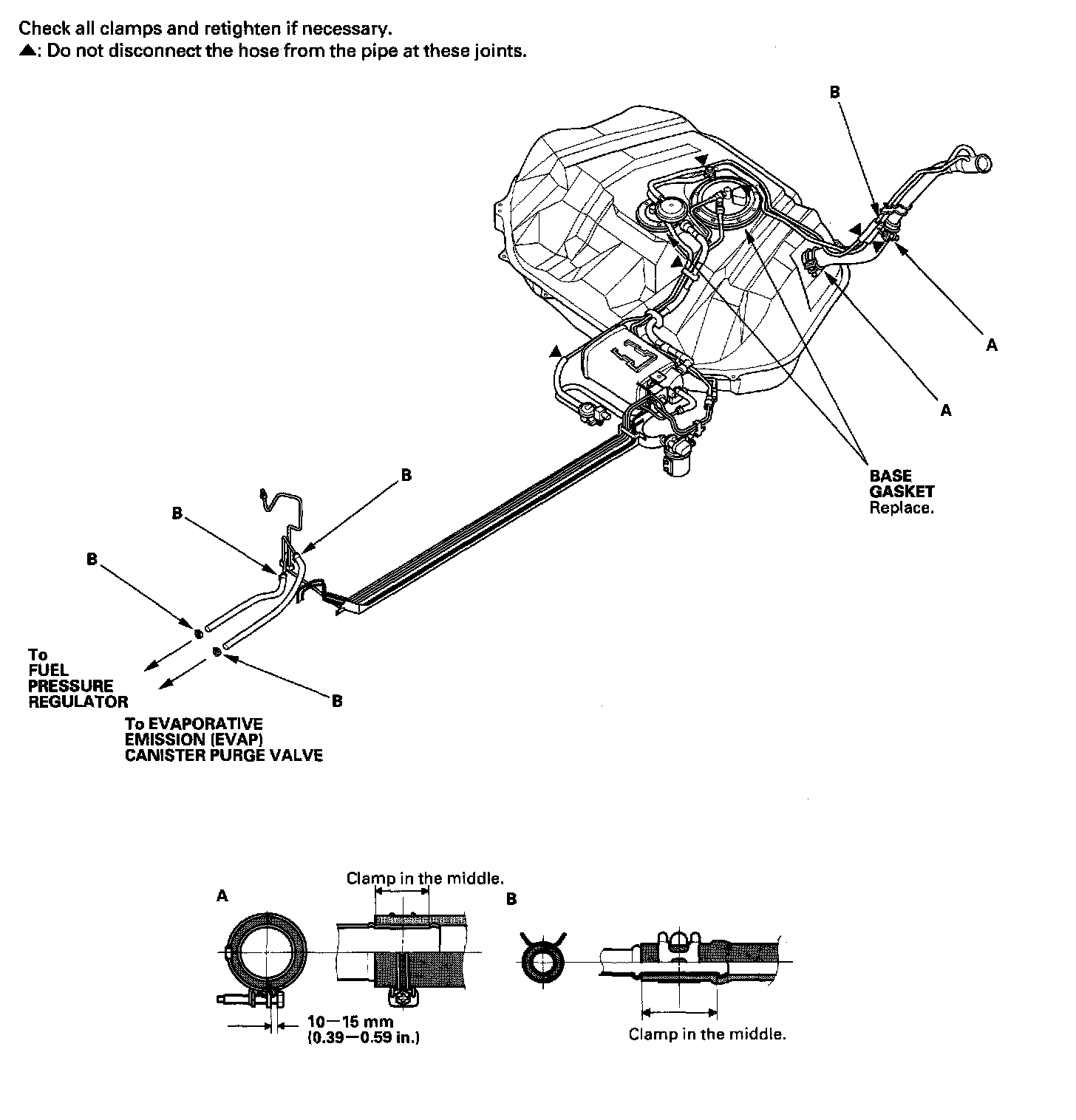

Fuel Line Inspection Part 2:




Check all clamps and retighten if necessary.
- : Do not disconnect the hose from the pipe at these joints.
