Dashboard Center Vent

Dashboard Center Vent Removal/Installation

NOTE: Take care not to scratch the vent panel and related parts.

1. Remove the passenger's vent panel.

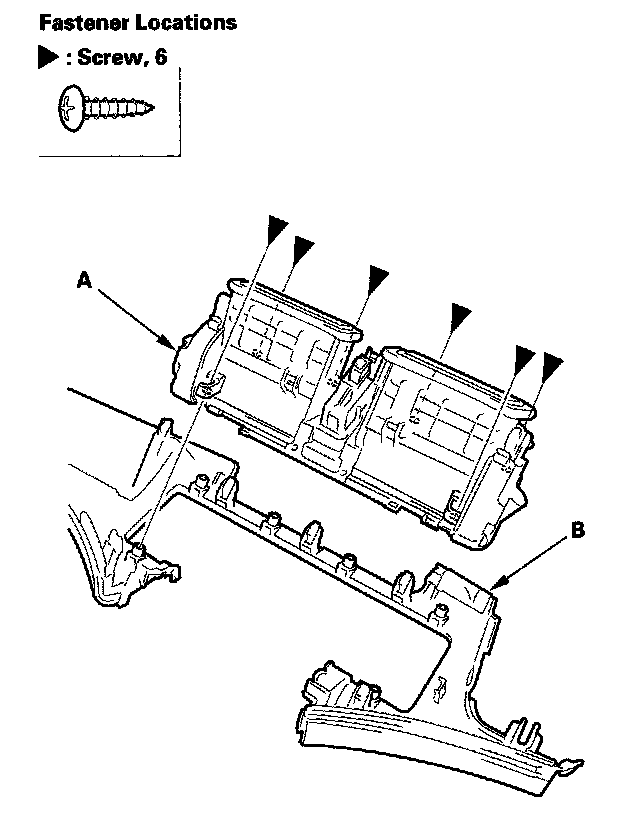

2. Remove the screws, then remove the center vent (A) from the vent panel (B).
3. Install the center vent in the reverse order of removal.
