Right Engine Compartment Wire Harness




Connector and Harness Locations

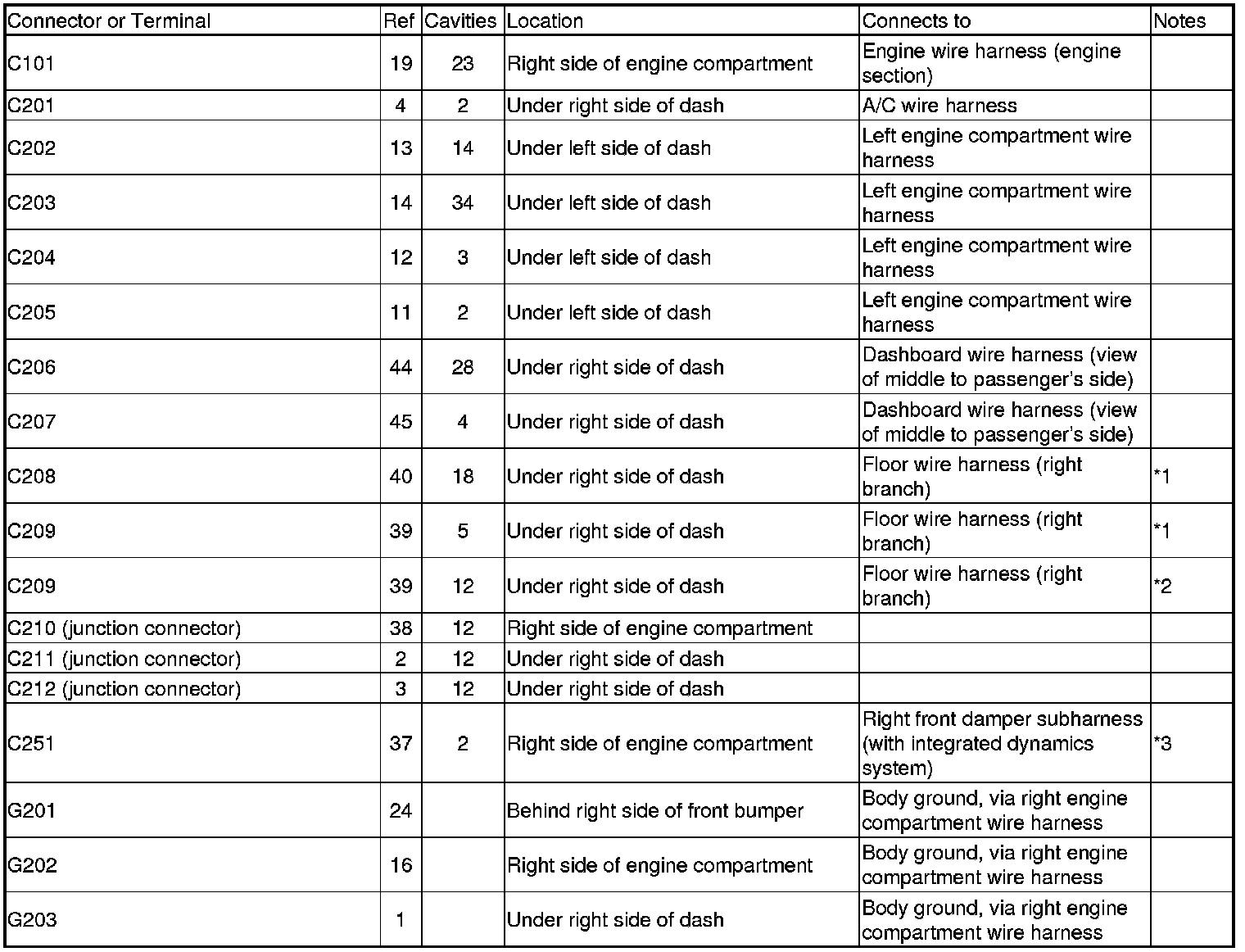

Right Engine Compartment Wire Harness

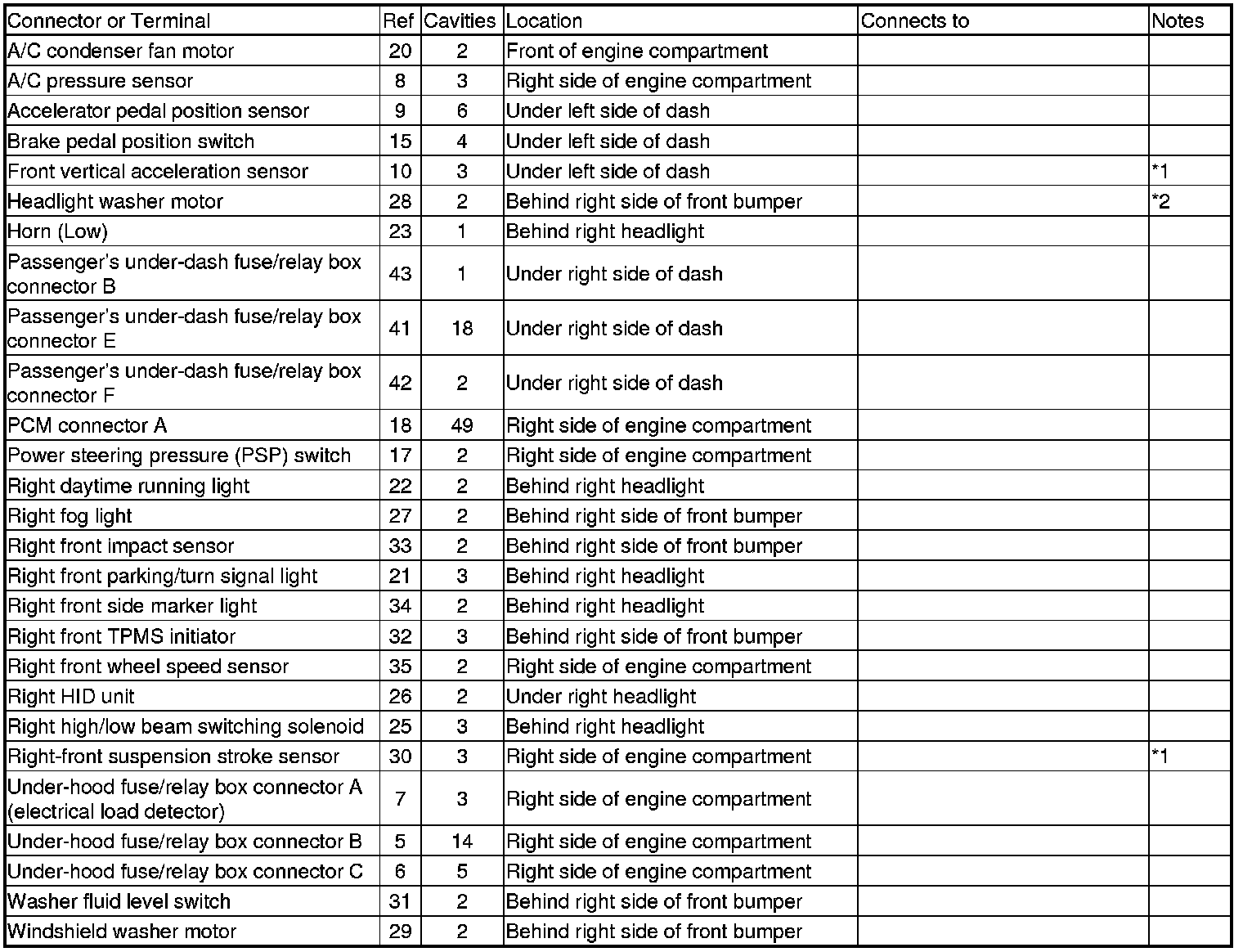

Right Engine Compartment Wire Harness (cont'd)

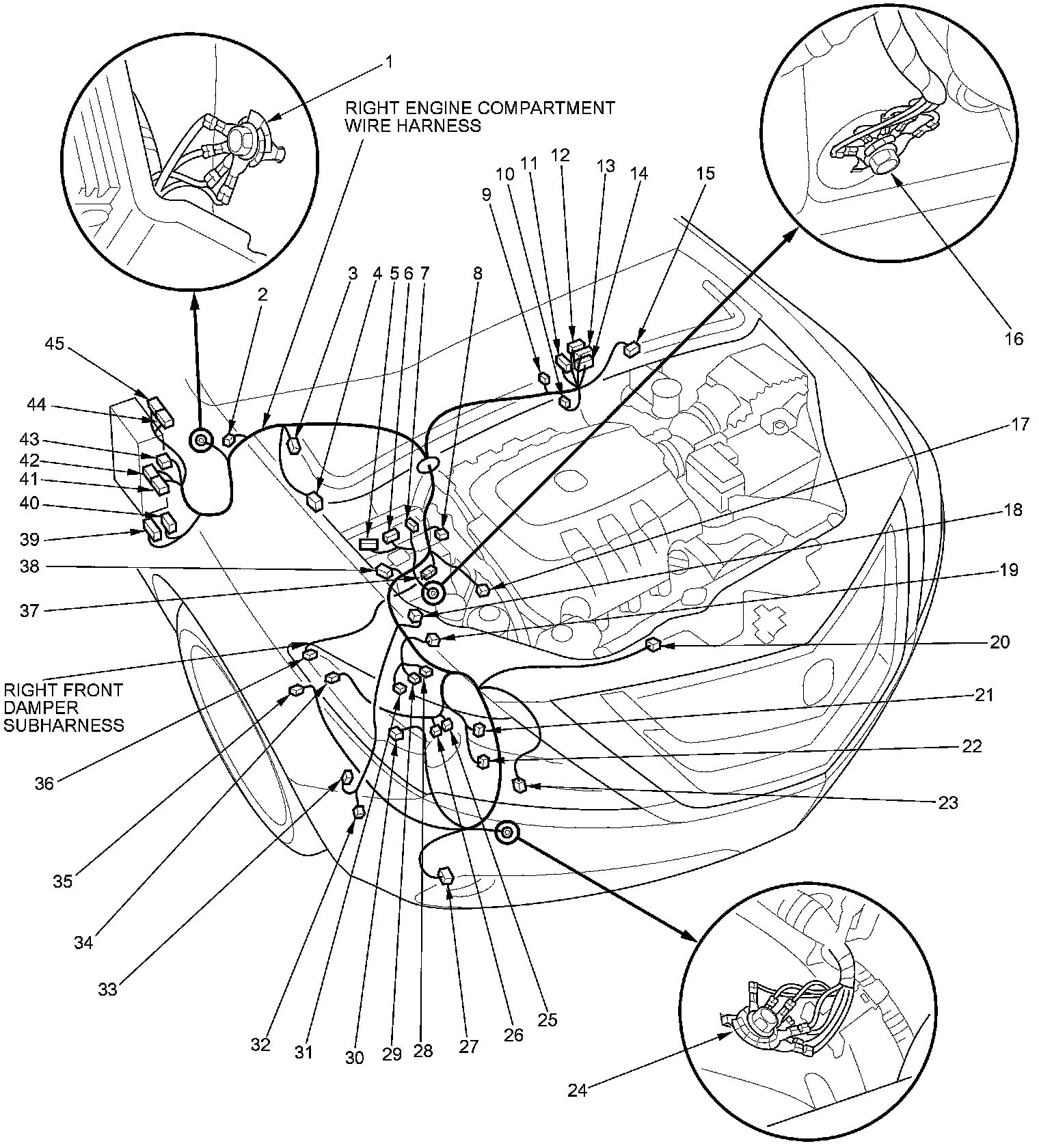

Harness View
