Heated Glass Element
>>
Heated Glass Control Module
Heated Glass Control Module

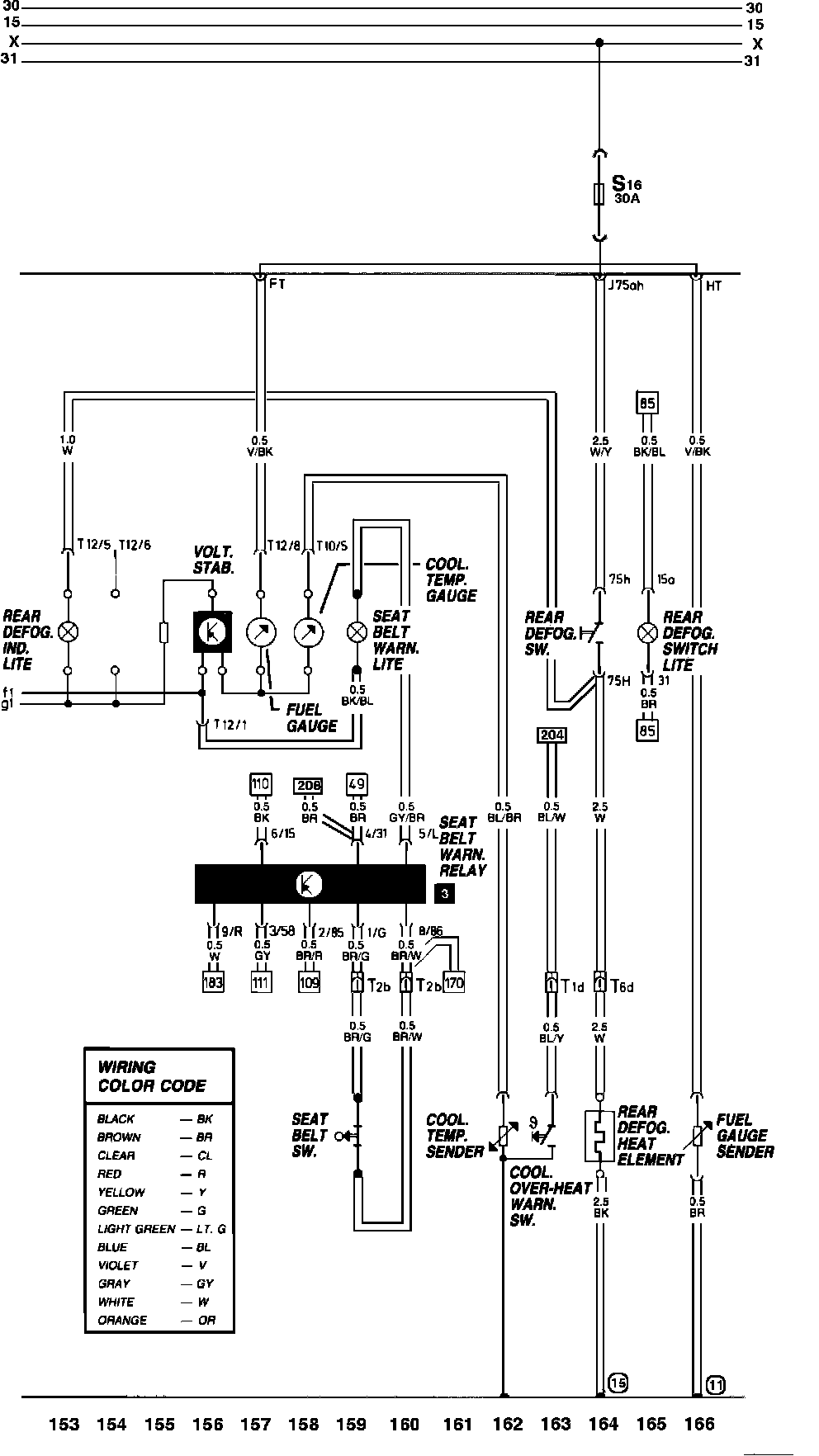

Main Wiring Diagram:
