Leak Detection Pump - Checking

Group: 24

Number: 97-03

Date: Oct. 27, 1997

Subject:
Leak Detection Pump (LDP), checking CAN-bus Data Exchange (Motronic/ABS), checking

Model(s):
A8 m.y. 1998





The Repair Manual are new and will be integrated with the next Repair Manual update.





Update to Repair Group 24

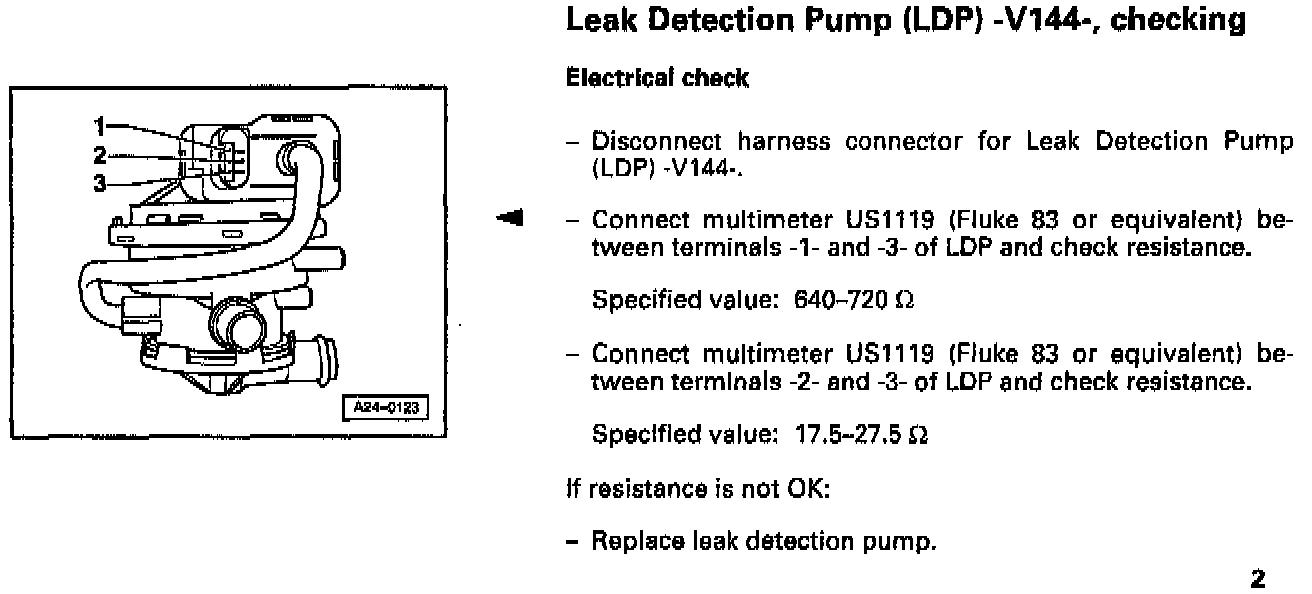

Leak Detection Pump (LDP) -V144-, checking





Voltage supply, checking





CAN-bus data exchange between Motronic
ECM and ABS control module, checking
