5 SPD Manual Transmission 01A AWD



Tightening torques

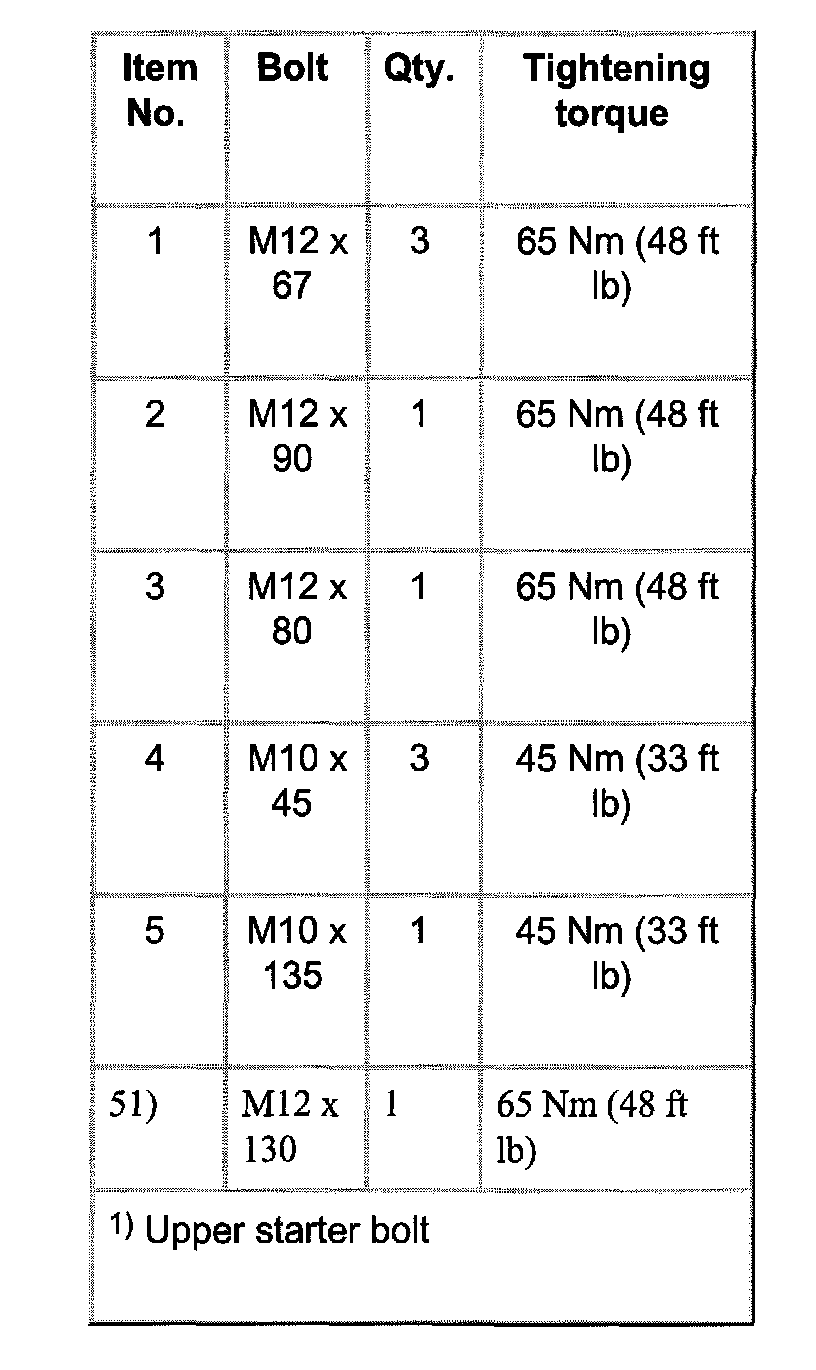

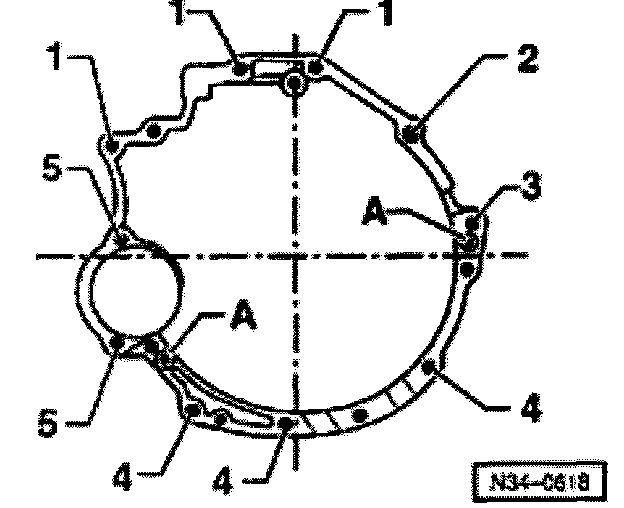

Transmission to engine






A: Dowel sleeves

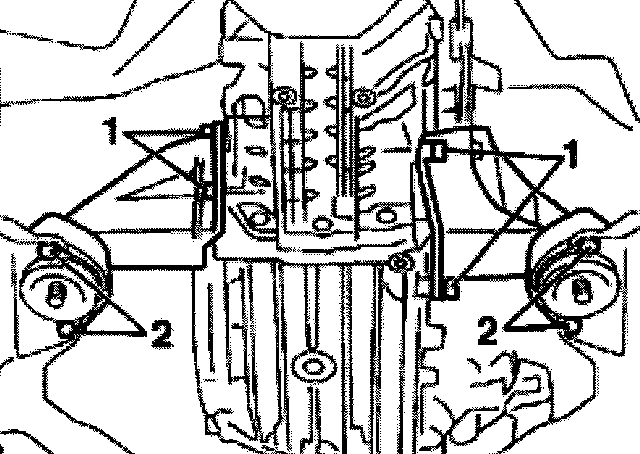

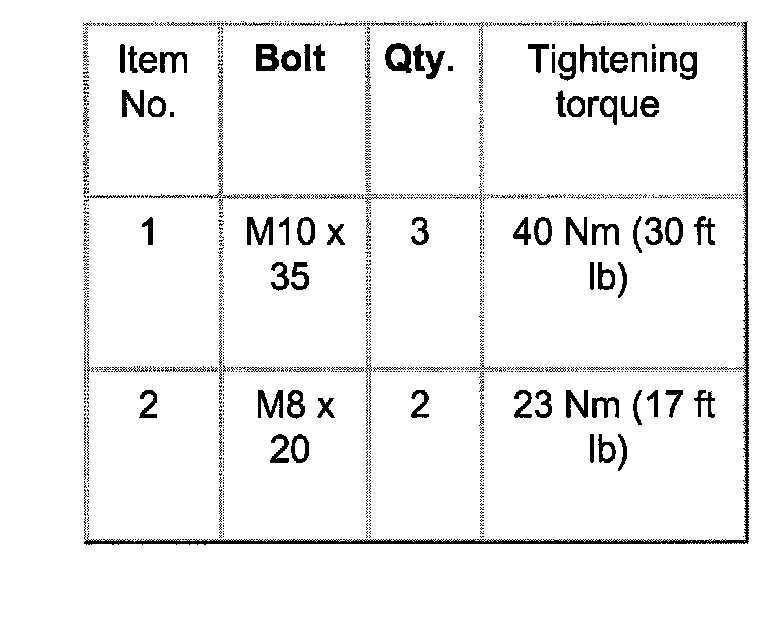

Transmission engine assembly mount

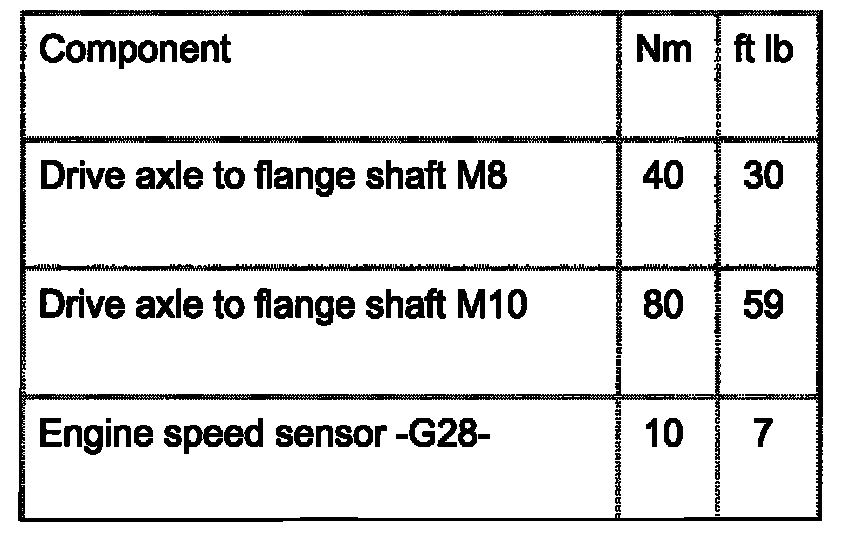

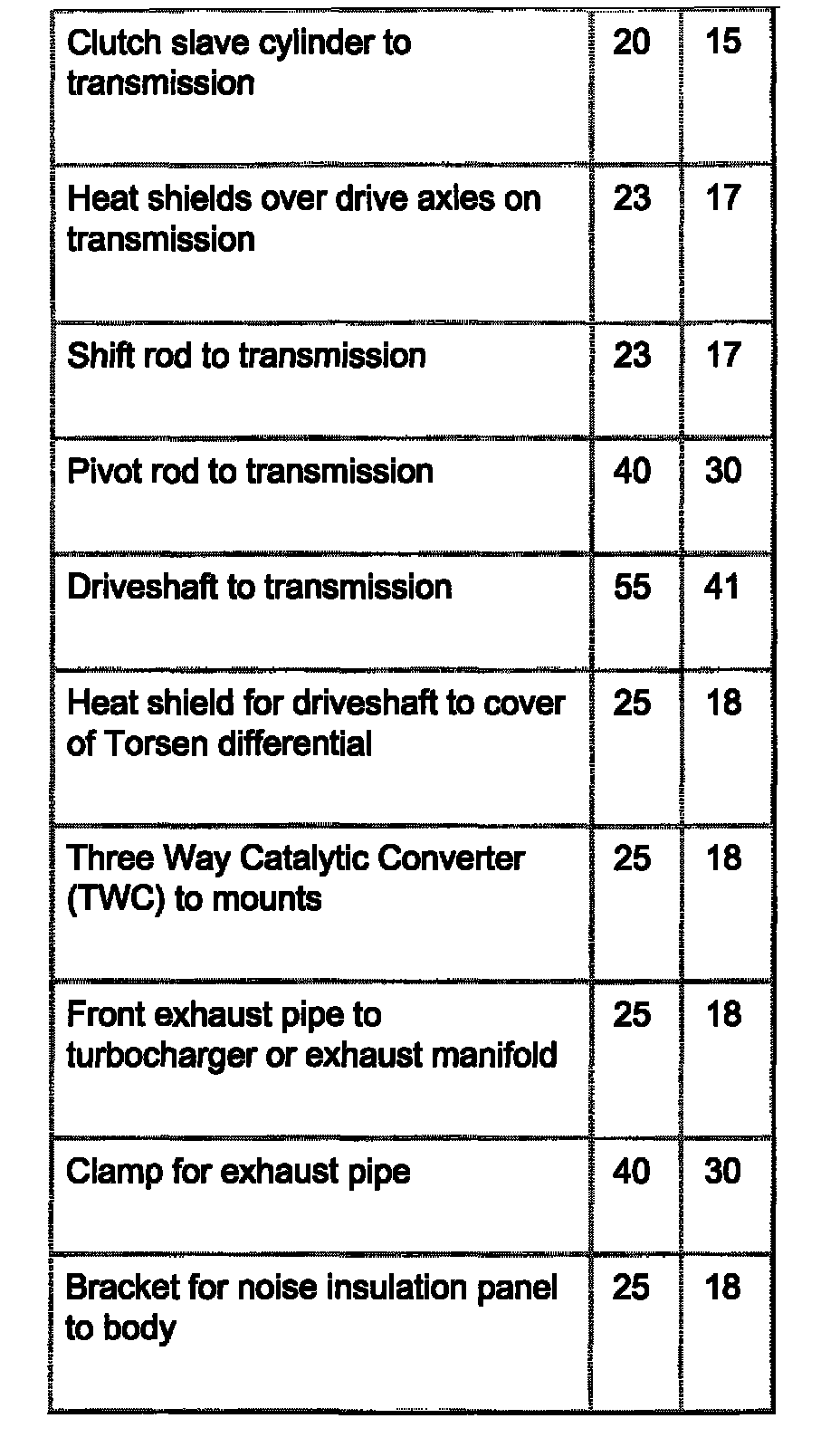

Component Tightening Torques
