Section 802

Main fuse, connector stations, relay/fuse carriers, fuse panel, from August 2004

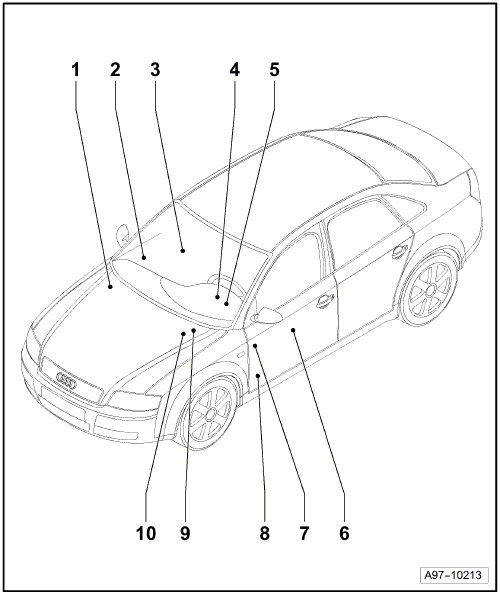

Overview







1 - Main fuse
• => Fig. 1 page => [ Main fuse ] Main fuse

2 - Connector station - right A-pillar
• => Fig. 2 page => [ Connector stations ] Connector Stations

3 - Connector station - RF seat wiring
• => Fig. 3 page => [ Fig. 3 Connector station - RF seat wiring ] Connector Stations

4 - Relay carrier (9-position) with vehicle voltage control module
• => Fig. 7 page => [ ] Connector Stations - => [ Fuse colors ] Connector Stations

5 - Relay carrier (4-position) with threaded connection
• => Fig. 8 page => [ ] Connector Stations - => [ ] Connector Stations






6 - Connector station - LF seat wiring
• => Fig. 4 page => [ Fig. 4 Connector station - LF seat wiring ] Connector Stations

7 - Fuse panel
• => Fig. 10 page => [ Fuse panel ] Fuse Panel - => [ ] Fuse Panel

8 - Connector station left A-pillar
• => Fig. 5 page => [ ] Connector Stations

9 - Connector station with threaded connection
• => Fig. 6 page => [ ] Connector Stations

10 - Relay carrier (4-position)
• => Fig. 9 page => [ ] Connector Stations - => [ Fuse colors ] Connector Stations
