Right CAN-Bus Disconnection Plug -T46b-, Removing and Installing

Right CAN-Bus Disconnection Plug - T46b-, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.







- Open right fuse panel cover -arrow-.

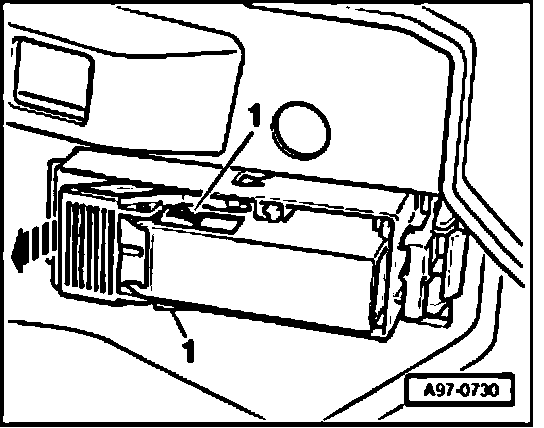

- Press retainer tabs -1- at multi-pin connector.
- Release catch -arrow- and disconnect electrical connector.

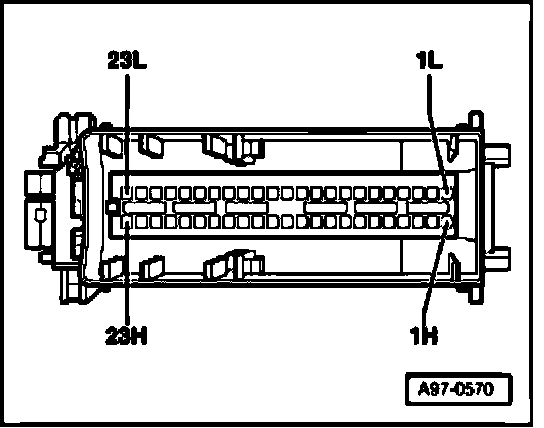

NOTE: CAN-Bus Disconnection plug pin assignments

Installing
Install in reverse order of removal.
