Subframe Mount Assembly Overview

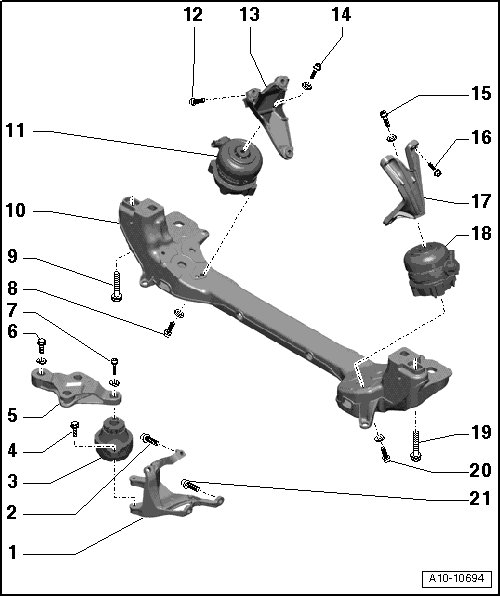

Subframe Mount Assembly Overview





1 Torque bracket

2 Bolt

• 9 Nm

3 Torque support bearing

• Removing and installing, refer to => [ Torque Support Bracket ] Service and Repair

4 Bolt

• 23 Nm

5 Torque support bracket

6 Bolt

• 40 Nm

7 Bolt

• 40 Nm

8 Bolt

• 23 Nm

9 Bolt

• 68 Nm

10 Engine carrier

11 Engine mount, right

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Engine Mount

12 Bolt

• 40 Nm

13 Right engine support

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Engine Mount

14 Bolt

• 40 Nm

15 Bolt

• 40 Nm

16 Bolt

• 40 Nm

17 Left engine support

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Engine Mount

18 Engine mount, left

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Engine Mount

19 Bolt

• 68 Nm

20 Bolt

• 23 Nm

21 Bolt

• 23 Nm
