Heated Oxygen Sensor and Sensor Regulation Before Catalytic Converter, Checking

Heated Oxygen Sensor and Sensor Regulation before Catalytic Converter, Checking

• Use only gold-plated terminals when servicing terminals in the electrical harness connectors of the Heated Oxygen Sensor (HO2S) ( G39)

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Heated Oxygen Sensor (HO2S) (G39) fuse OK.





• The Heated Oxygen Sensor (HO2S) (G39) before catalytic converter OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Exhaust system between catalytic converter and cylinder head properly sealed.

• Coolant Temperature at least 80° C.

Function test

- Connect scan tool.

- Start the engine and let it run at idle.

- Select "Diagnostic mode 6: Check test results of components that are not continuously monitored".

- Select "Test-ID 01: Oxygen sensor monitoring before catalytic converter".

- Select "Test-ID 131: Dynamic test".

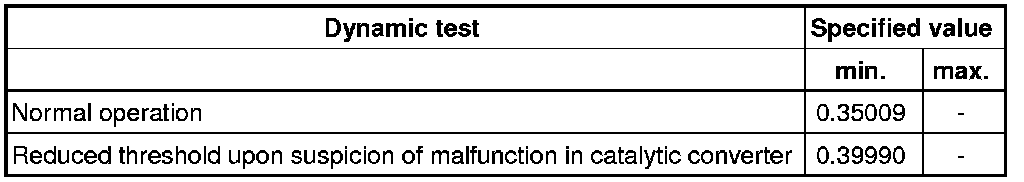

- Check the specified values at idle.





If specified values are obtained:

- End diagnosis and switch the ignition off.

If the specified values are not obtained:

Checking primary voltage

- Disconnect the black Heated Oxygen Sensor (HO2S) (G39) electrical harness connector - 5 -





- Using a multimeter, check the Heated Oxygen Sensor (HO2S) electrical harness connector - 1 - terminals 1 to 5 for voltage.





Specified value: 0.400 to 0.500 Volts

- Switch the ignition off.

If the specified value was not obtained:

- Replace the Heated Oxygen Sensor (HO2S) (G39) Refer to Fuel Injection and Ignition Repair Information.

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. Refer to Fuel Injection and Ignition Repair Information.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Motronic Engine Control Module (ECM) ( J220).

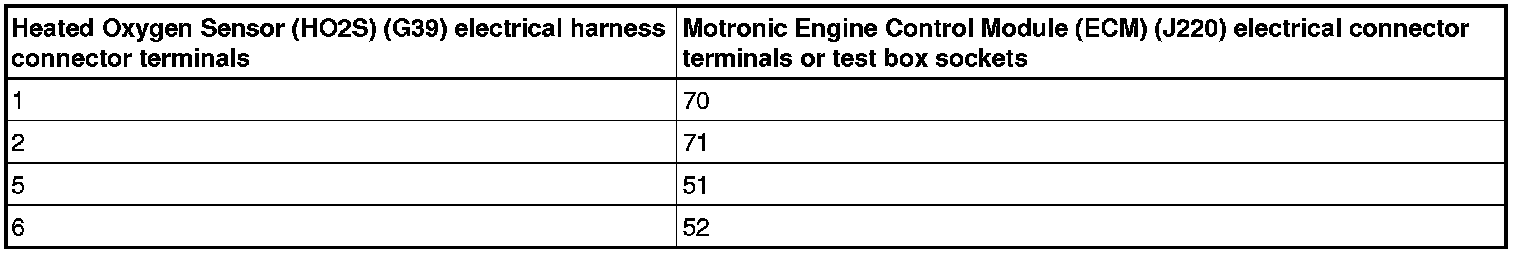

- Using a Multimeter, check the Heated Oxygen Sensor (HO2S) (G39) electrical harness connector terminals to the Motronic Engine Control Module (ECM) ( J220) electrical harness connector terminals for an open circuit.









Specified value: 1.5 ohms Max.

If the specification was not obtained:

- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring:

- Replace the Motronic Engine Control Module (ECM) (J220).

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Readiness Code.

- End of diagnosis.
