Intake Manifold Tuning Valve Position Sensor, Checking

Intake Manifold Tuning Valve Position Sensor, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• Fuses for engine electronics OK.

• Parking brake engaged.

• Battery voltage at least 12.5 V.

• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• All electrical consumers such as, lights and rear window defroster, switched off (radiator fan must not run during test).

• A/C switched off.

• The fuel tank at least 1/4 full.

• Ignition switched off.

Test procedure

- Perform a preliminary check to verify the customer's complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Checking voltage supply

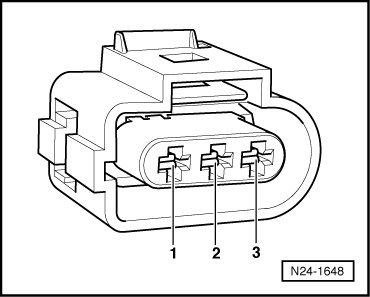

- Disconnect the electrical harness connector from the Intake Manifold Tuning (IMT) Valve Position Sensor (G513) - 3 -.





- Using a Multimeter , check the electrical harness connector for voltage.





If specified value is obtained:

- Replace the Intake Manifold Tuning (IMT) Valve Position Sensor (G513).

If specified value is not obtained:

Checking wiring connections

If the manufacturers test box is being used, perform the following step.

- Connect the Test Box 105 Pin (VAG1598/42) with Adapter Cable (1598/39-1).

If the manufacturers test box is not being used, perform the following step.

- Remove the Engine Control Module (ECM) (J623) => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.





- Using a Multimeter , check the following electrical wiring harness terminals for an open circuit.





Specified value: 1.5 ohms max.

If the specification is not obtained:

- Check the wiring for a short circuit to Battery positive (+) or an open circuit.

- If necessary, repair the wiring connection.

If no malfunctions are found in wires:

- Replace the Engine Control Module (ECM) (J623). Refer to=> [ Engine Control Module, Replacing ] Engine Control Module, Replacing

- Assembly is performed in the reverse of the removal.

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
