Leak Detection Pump, Checking

Leak Detection Pump, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Leak Detection Pump (LDP) (V144) fuse OK.

• The ignition switched off.

Procedure

- Remove the left rear wheel housing liner.

- Disconnect the Leak Detection Pump (LDP) (V144 ) electrical harness connector - 2 -.





Checking internal resistance

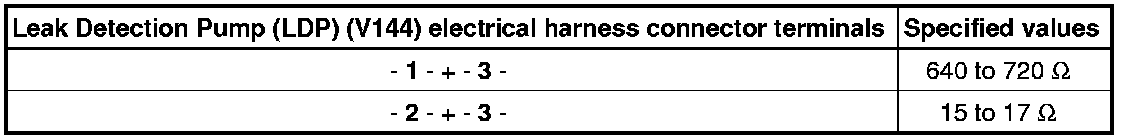

- Using a Multimeter, check the Leak Detection Pump (LDP) (V144) for resistance as follows:









If any of the specifications are not obtained:

- Replace the Leak Detection Pump (LDP) (-V144- ).

If the specified values are obtained:

Checking voltage supply

• The voltage for the Leak Detection Pump (LDP) (-V144- ) is supplied by the Engine Component Power Supply Relay (J757).

- Using a Multimeter, check the Leak Detection Pump (LDP) (-V144-)electrical harness connector terminal 3 to Ground (GND) for voltage.









- Operate the starter briefly.

Specified value: battery voltage.

- Switch the ignition off.

If the specified value was not obtained:

- Using a Multimeter, check the Leak Detection Pump (LDP) (-V144-)electrical harness connector terminal 3 to the Engine Component Power Supply Relay ( J757) terminal 2/87 for resistance.





Specified value: 1.5 Ohms

If the specified value was not obtained:

- Check the wiring for a short circuit to Ground (GND) or an open circuit.

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and if the voltage supply was OK:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. Refer to Fuel Injection and Ignition Repair Information.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) (J623 ). Refer to => [ ECM, Removing and Installing ] ECM, Removing and Installing.

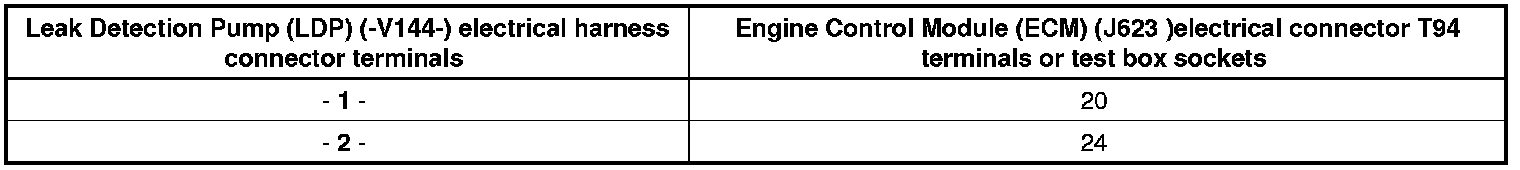

- Using a Multimeter, check the Leak Detection Pump (LDP) (-V144-) electrical connector terminal 1 to Engine Control Module (ECM) (J623) electrical connector T94 terminal 20 for an open circuit.

- Using a Multimeter, check the Leak Detection Pump (LDP) (-V144-) electrical connector terminal 2 to Engine Control Module (ECM) (J623) electrical connector T94 terminal 24 for an open circuit.









Specified value: 1.5 ohms max.

If the specification was not obtained:

- Check the wiring for a short circuit to Battery positive (+), or an open circuit.

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in wiring:

- Replace the Engine Control Module (ECM) (J623 ). Refer to => [ ECM, Removing and Installing ] ECM, Removing and Installing.

- Install the rear engine cover - arrows -.





Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

- End of diagnosis.
