Information Electronics Control Module 1, From 1 September 2008

Communication System

Information Electronics Control Module 1, from 1 September 2008

Information electronics control module 1 (J794) is located in the glove compartment on the left side.

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

• Fiber optic plier repair set (VAS 6223)

• Protective cap for cable connector (VAS 6223/9)

• If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine. Use the Vehicle Diagnosis, Testing and Information System (VAS 5051) to do so.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Open glove box.

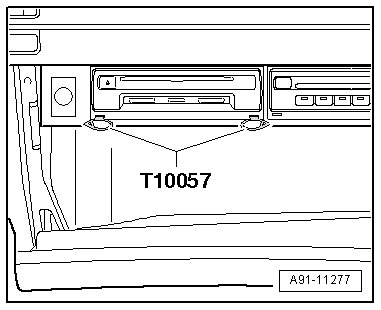

- Insert the two clips from the (T10057) into the slots on the information electronics control module 1 until they engage. Points on the grip eyelets of tool face outward.





- Remove the information electronics control module 1 from the installation frame.

- Remove the (T10057) by pushing the locking tabs on information electronics control module 1.

Installing

- Connect harness connectors.

- Slide the information electronics control module 1 into the installation frame until it engages.
