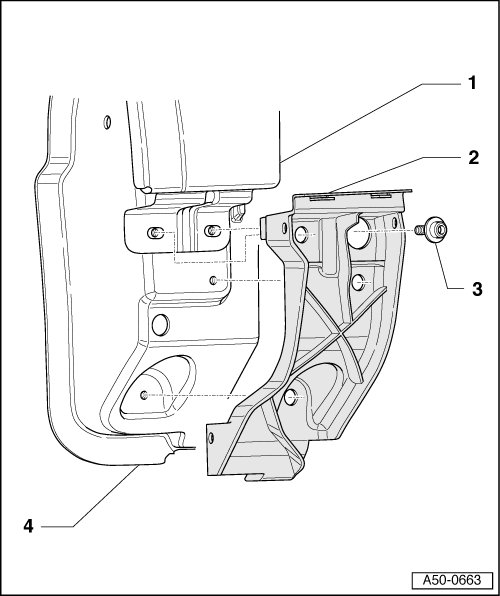

Fender Lower Bracket Assembly Overview

Fender Lower Bracket Assembly Overview





1 - Fender

2 - Fender Bracket

• Remove upper cover for sill panel cover

• Remove bolts on upper sill panel cover up to approximately B-pillar.

• Press sill panel cover to the side far enough until bolts for bracket can be removed.

• Remove bracket and remove bolts for fender at bottom.

3 - Screw

• 8 Nm

4 - Outer A-Pillar
