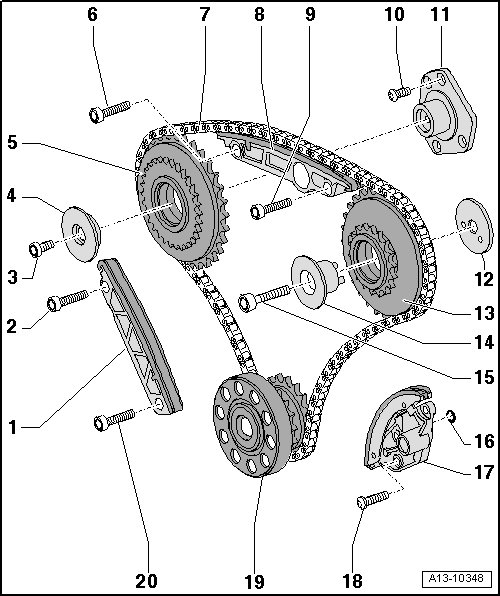

Timing Mechanism Drive Chain Assembly Overview

Timing Mechanism Drive Chain Assembly Overview





1 Guide rail

2 Bolt

• Replace

• 17 Nm plus an additional 90° (1/4) turn.

3 Bolt

• Tightening specifications => [ (Item 15) Bolt ] Camshaft Timing Chain Assembly Overview

4 Thrust washer for drive sprocket

5 Drive sprocket for left timing chain

6 Bolt

• Replace

• 17 Nm plus an additional 90° (1/4) turn.

7 Power Take-Off Drive Chain

• Mark running direction with pain before removing.

• Removing and installing, refer to => [ Timing Mechanism Drive Chain ] Timing Mechanism Drive Chain

8 Guide rail

9 Bolt

• Replace

• 17 Nm plus an additional 90° (1/4) turn.

10 Bolt

• Tightening specifications => [ (Item 12) Bolt ] Camshaft Timing Chain Assembly Overview

11 Mounting bracket for drive sprocket

• For right camshaft timing chain

• Asymmetrical version

• Installed location => [ Location of the mounting pins for the camshaft
timing chain drive sprocket ]

12 Thrust washer

13 Drive sprocket for right timing chain

14 Pivot pin for drive sprocket

15 Bolt

• Tightening specifications, refer to => [ Camshaft Timing Chain Assembly Overview ] Camshaft Timing Chain Assembly Overview

16 O-ring

• Replace

17 Chain tensioner

18 Bolt

• Replace

• 5 Nm plus an additional 90° (1/4) turn.

19 Crankshaft

20 Bolt

• Replace

• 17 Nm plus an additional 90° (1/4) turn.

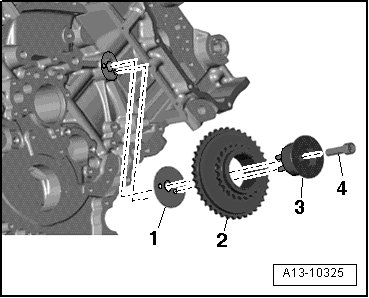

Location of the mounting pins for the camshaft timing chain drive sprocket





• Alignment bushings in right camshaft timing chain drive sprocket mounting pins - 3 - must engage in holes in thrust washer - 1 - and cylinder block.

2 Drive sprocket for right camshaft timing chain
4 Bolt
