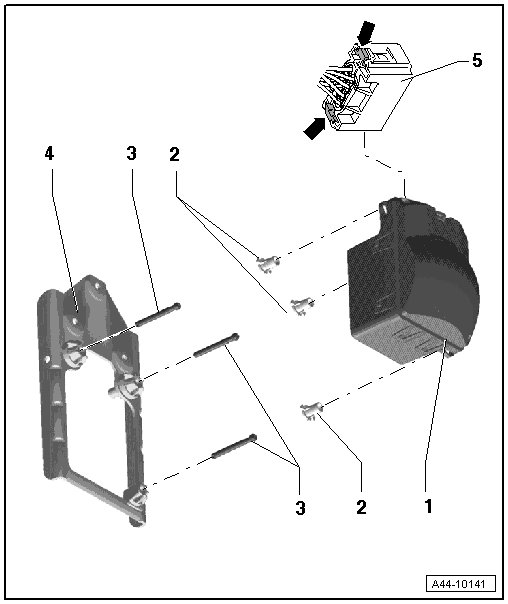

Adaptive Cruise Control Sensor Assembly Overview

Adaptive Cruise Control Sensor Assembly Overview





1 Adaptive Cruise Control Sensor

• Removing and installing, refer to => [ Adaptive Cruise Control Sensor ] Removal and Replacement.

2 Mount

• For the studs.

3 Studs

• The studs in the bracket are preset. Do not change the adjustment.

4 Bracket

5 Electrical Connector

• To disconnect, compress both clamps - arrows -.
