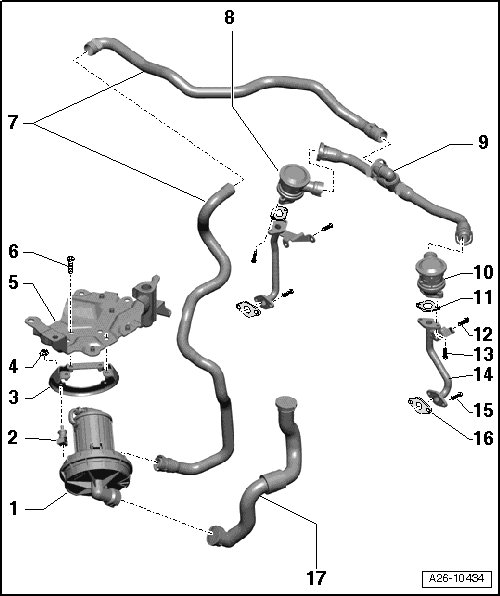

Secondary Air Injection System Assembly Overview





1 Secondary Air Injection (AIR) Pump Motor (V101)

• Component location: At front right in engine compartment below the longitudinal member

• Removing and installing, refer to => [ Secondary Air Injection Pump ] Service and Repair

• Check in "Guided Fault-Finding" operating mode

2 Bonded rubber bushing

3 Bracket

• For Secondary Air Injection (AIR) pump motor (V101)

4 Nut

• 9 Nm

5 Bracket

• For Secondary Air Injection (AIR) Pump Motor (V101) and ATF cooler

6 Bolt

• 9 Nm

7 Air guide hoses

• From Secondary Air Injection (AIR) Pump Motor (V101) to secondary air injection combi-valves

8 Right secondary air injection (AIR) combination valve

• Component location: Back of right cylinder head

• Checking, refer to => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Testing and Inspection

• Removing and installing => [ Secondary Air Injection Right Combination Valve ] Secondary Air Injection Right Combination Valve

9 Air guide hose

• to Secondary Air Injection (AIR) combi-valves

10 Left secondary air injection (AIR) combination valve

• Component location: back of left cylinder head

• Checking, refer to => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Testing and Inspection

• Removing and installing, refer to => [ Secondary Air Injection Left Combination Valve ] Secondary Air Injection Left Combination Valve

11 Gasket

• Replace

12 Bolt

• 9 Nm

13 Bolt

• 9 Nm

14 Connecting pipe

• To cylinder head

15 Bolt

• 9 Nm

16 Gasket

• Replace

17 Air guide hose

• From air filter housing
