Windshield Wiper Motor with Windshield Wiper Motor Control Module

Windshield Wiper Motor with Windshield Wiper Motor Control Module

Special tools, testers and auxiliary items required

• Hose clamps up to 25 mm (3094)

• Workshop crane drip tray (VAS 6208)

• Hose clip pliers (VAS 6362)

Removing

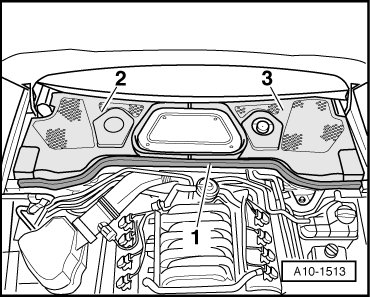

- Remove rubber seal - 1 - on plenum chamber covers.

- Remove plenum chamber covers - 2 - and - 3 -.

- Remove dust and pollen filter.

• Cover air duct at air conditioner housing with clean cloth to stop anything falling in.

- Remove wiper arms. Refer to => [ Windshield Wiper Arms ] Removal and Replacement.

- Remove the bolts at the left and right - arrows - for the cowl panel grille - 1 -.






The cowl panel trim could be damaged.

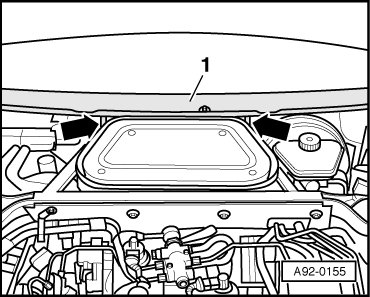

• Coat the transition between the windshield and cowl panel trim with some soapy water and carefully pull the cowl panel trim - 1 - vertically out of the retainer on the windshield beginning at the edge of the window.

- Carefully remove the cowl grille from the locking mechanism on the windshield.

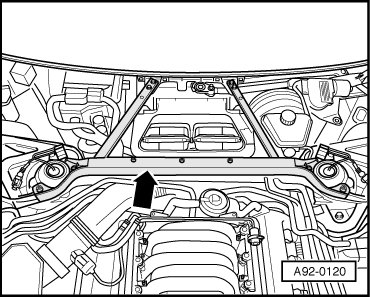

- Remove dome brace - arrow -.

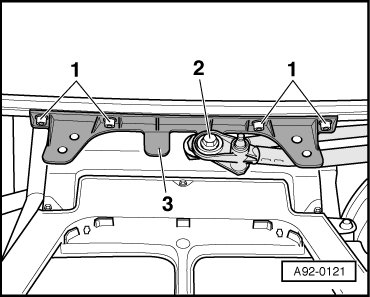

- Remove bolts - 1 - and - 2 -.





- Detach holder - 3 - for dome brace.

Vehicles with Coolant Expansion Tank in Plenum Chamber





- Remove rear section of left front wheel housing liner.

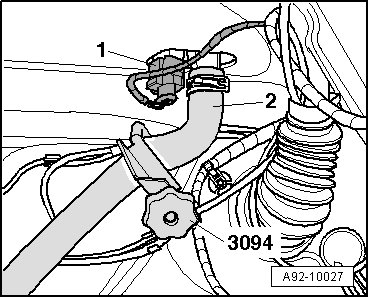

- Clamp off coolant hose - 2 - with a (3094).

- Disconnect electrical connection - 1 - at low coolant level indicator.

- Place (VAS 6208) beneath coolant expansion tank and disconnect coolant hose.

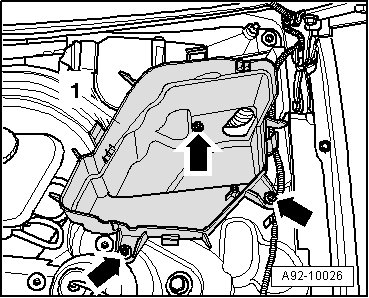

- Remove retaining bolt - 2 - on coolant expansion tank.

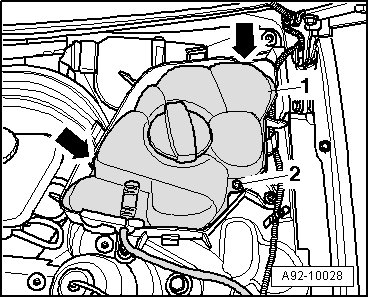

- Disengage retaining clips - arrows - and remove coolant expansion tank - 1 - from mount.

- Remove nuts - arrows -.





- Remove coolant expansion tank mount - 1 - from plenum chamber.

All Vehicles





- Remove bolts - arrows - and remove entire wiper frame.

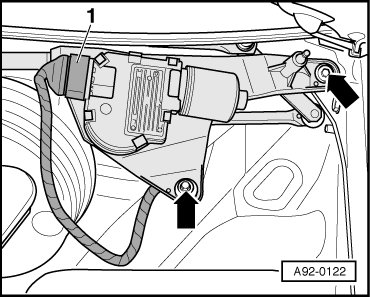

- Disconnect electrical connector - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Install wiper motor with wiper frame in vehicle.

- Install the dome brace.

Vehicles with Coolant Expansion Tank in Plenum Chamber

- Install mount and coolant expansion tank.

- Install rear section of left front wheel housing liner.

- Fill coolant.

All Vehicles

- Adjust wiper arms. Refer to => [ Windshield Wiper Arms, Adjusting ] Adjustments.

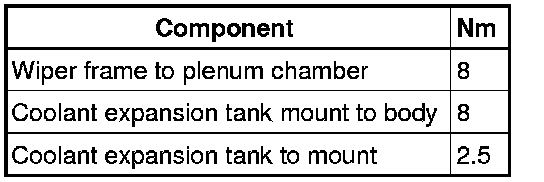

Tightening Specifications
