Subframe, Assembly Overview

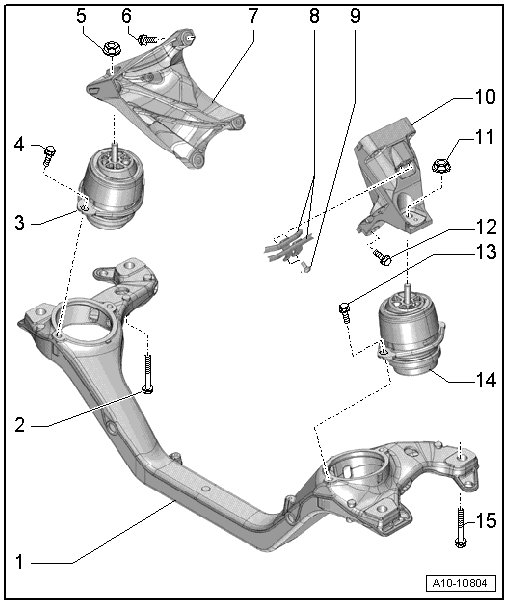

Subframe Assembly Overview





1 Engine Carrier

2 Bolt

• Replace

• 120 Nm plus an additional 180° turn

3 Engine Mount, Right

• Removal and installation, refer to => [ Engine Mount ] Service and Repair

4 Bolt

• 60 Nm

5 Nut

• 75 Nm

6 Bolt

• Replace

• 50 Nm plus an additional 90° turn

7 Right Engine Support

8 Not Installed

9 Not Installed

10 Left Engine Support

11 Nut

• 75 Nm

12 Bolt

• Replace

• 50 Nm plus an additional 90° turn

13 Bolt

• 60 Nm

14 Engine Mount, Left

• Removal and installation, refer to => [ Engine Mount ] Service and Repair

15 Bolt

• Replace

• 120 Nm plus an additional 180° turn
