Adaptive Cruise Control Sensor

Adaptive Cruise Control Sensor

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

• The adaptive cruise control sensor (G550) is located behind the license plate holder in the front bumper.

Removing

• Due to limited space, it is necessary to remove the screws from the bumper cover and to pull bumper cover forward slightly when removing and installing.

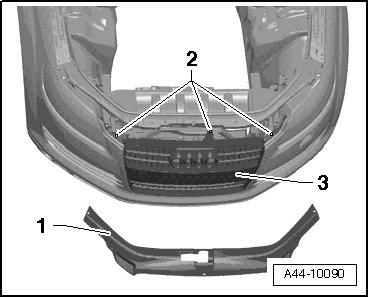

- Remove the lock carrier cover - 1 -.






- Remove screws - 2 -.

- Remove license plate holder - 3 -.

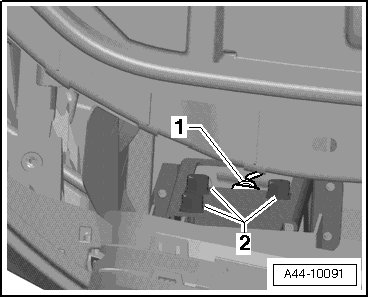

- First release connector - 1 - and then remove.






- Rotate fasteners - 2 - approximately 45° left and remove.

- Remove the adaptive cruise control sensor forward through the bumper cover.

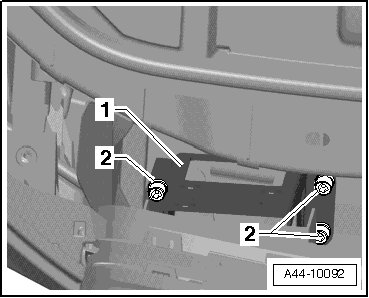

- Remove bolts - 2 -.






- Remove bracket upward and out between bumper and bumper cover.

Installing

Installation is performed in the reverse order of removal. Observe the following when doing so:

• Studs in bracket are preset. If necessary, correct adjustment.

- Place the adaptive cruise control sensor on a soft, clean cloth.

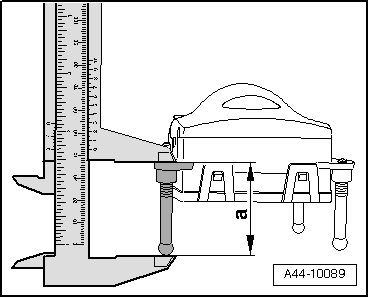

Measure dimension - a - of all studs.






Dimension - a - must be 43 mm.

- Insert bracket and tighten bolts.

Tightening specification, refer to => [ Adaptive Cruise Control Sensor Assembly Overview ] .

- Install the adaptive cruise control sensor and carefully push the mounts onto the stud bolts inside the sensor.

- Install front bumper cover license plate holder and tighten bolts.

- Calibrate the adaptive cruise control. Refer to => [ Adjustment Procedure Using ] Adjustment Procedure Using ACC Setting Device (VAS 6190).
