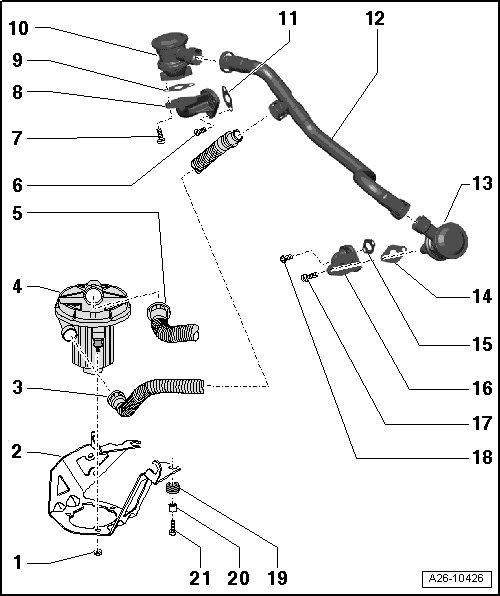

Secondary Air Injection System Version 1 Assembly Overview
Secondary Air Injection System Version 1 Assembly Overview
1 Nut
• 9 Nm
2 Bracket
• for Secondary Air Injection (AIR) pump motor (V101)
3 Hose
• To Secondary Air Injection (AIR) combi-valves
4 Secondary Air Injection (AIR) Pump Motor (V101)
• Component location: At front right in engine compartment below the longitudinal member
• Removal and installation, refer to => [ Secondary Air Injection Pump ] Secondary Air Injection Pump
• check in "Guided Fault-Finding" operating mode -> vehicle diagnostic tester.
5 Hose
• To air filter housing
6 Bolt
• 9 Nm
7 Bolt
• 9 Nm
8 Flange
• To cylinder head
9 Gasket
• Replace
10 Right Secondary Air Injection (AIR) Combination Valve
• Component location: On the front of the right cylinder head
• Checking, refer to => [ Secondary Air Injection Combination Valve, Version 1, Checking for Function and Leaks ] Secondary Air Injection Combination Valve, Version 1, Checking For Function and Leaks
• Removal and installation, refer to => [ Secondary Air Injection Combination Valve ] Secondary Air Injection Combination Valve
11 Gasket
• Replace
12 Hose
• to Secondary Air Injection (AIR) combi-valves
13 Left secondary air injection (AIR) combination valve
• Component location: On the front of the left cylinder head
• Checking, refer to => [ Secondary Air Injection Combination Valve, Version 1, Checking for Function and Leaks ] Secondary Air Injection Combination Valve, Version 1, Checking For Function and Leaks
• Removal and installation, refer to => [ Secondary Air Injection Combination Valve ] Secondary Air Injection Combination Valve
14 Gasket
• Replace
15 Gasket
• Replace
16 Flange
• To cylinder head
17 Bolt
• 9 Nm
18 Bolt
• 9 Nm
19 Grommet
20 Bushing
21 Bolt
• 9 Nm

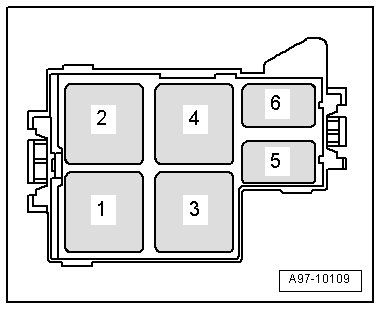

Component Location for Secondary Air Injection (AIR) Pump Relay (J299)
• In E-box, plenum chamber.
4 Secondary Air Injection (AIR) pump relay (J299)
• The Secondary Air Injection (AIR) pump fuse (S130) is located on a separate bracket.
