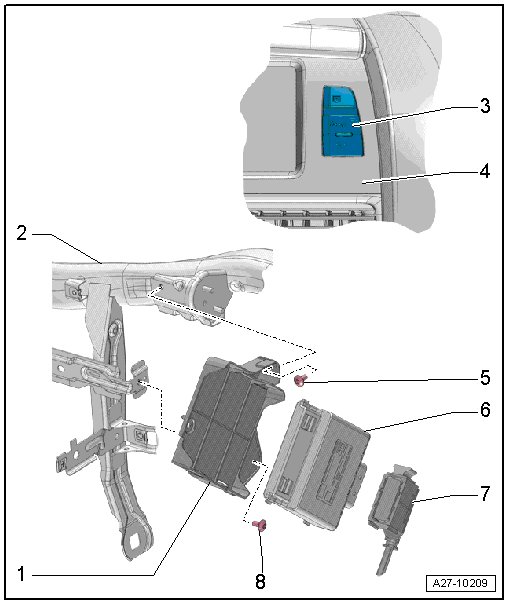

Start/Stop System Overview

Start/Stop System Overview






1 Bracket

• For the Voltage stabilizer (J532).

2 Central Tube

• For the instrument panel.

3 Start/Stop Mode Button (E693)

• Removing and installing, refer to => [ Glove Compartment Button (E316) and Display Button (E506) ] Glove Compartment Button (E316) and Display Button (E506).

4 Instrument Cluster Trim

5 Screw

• 4.5 Nm

6 Voltage Stabilizer (J532)

7 Electrical Connector

8 Screw

• 4.5 Nm
