Speech Control System Layout

Speech Control System Layout

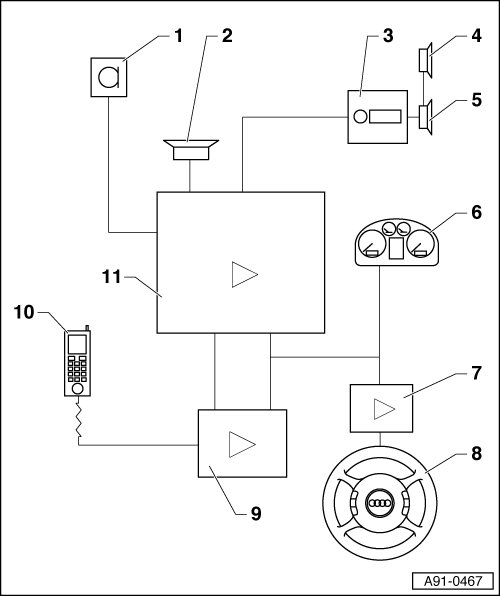

1 Telephone Microphone (R38) in Front Interior Light (W1)

2 Inside Loudspeaker (R70)

• In front center of instrument panel, through MY 2001.

3 Radio (R)

• In upper center console.

4 Left Front Treble Speaker (R20)/Right Front Treble Speaker (R22)

• In the front doors at the top.

5 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

• At the bottom of the door.

6 Instrument cluster display

7 Steering Column Electronic Systems Control Module (J527)

• On the steering column.

8 Multifunction steering with PTT button

9 Telephone/Telematics Control Module (J526)

• In the electronics box under front right seat.

10 Telephone Handset (R37)

• On the top of the center console.

11 Speech Input Control Module (J507)

• In the electronics box under right front seat.
