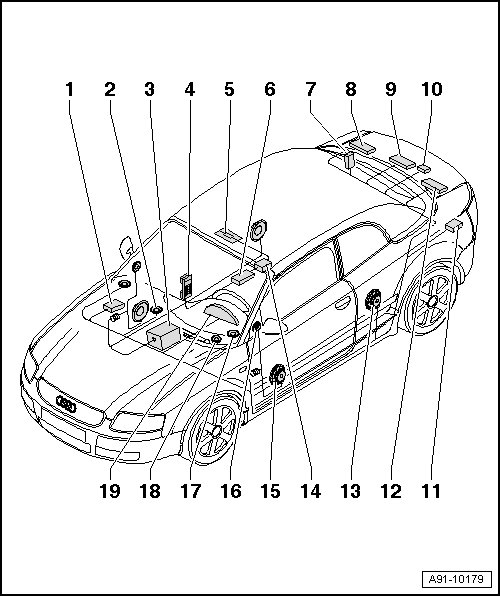

Speech Control System Component Locations

Speech Control System Component Locations





1 CD Changer (R41)

• In glove compartment

2 Inside Loudspeaker (R70)

• In front instrument panel, center

3 Radio (R)

• In center console, at top

4 Telephone Handset (R37)

• On the center console at the top and on the right side

5 Telephone Microphone (R38)

• In front interior light

6 Telephone/Telematics Control Module (J526)

• In electronics box under right front seat

• Connections, refer to => [ Telephone/Telematics Control Module Connectors ]

• Removing and installing, Refer to => [ Telephone/Telematics Control Module ] Telephone/Telematics System

7 Digital Sound System Control Module (R12)

• In the luggage compartment behind the right side trim

8 Right Antenna Module (R109)

• Behind the rear lid trim

9 Telephone Antenna (R65)

• Behind the rear lid trim

10 Navigation System Antenna (R50)

• Behind the rear lid trim

11 Navigation/TV Tuner (J415)

• In the luggage compartment behind the left trim

12 Left Antenna Module (R108)

• Behind the rear lid trim

13 Left Rear Speaker (R4)/Right Rear Speaker (R5)

• In the lower side trim

14 Speech Input Control Module (J507)

• In the electronics box under right front seat

• Connections, refer to => [ Speech Input Control Module Connectors ] Description and Operation

• Removing and installing, Refer to => [ Speech Input Control Module ] Telephone/Telematics System

15 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

• In bottom of the door.

16 Left Front Treble Speaker (R20)/Right Front Treble Speaker (R22)

• In the top of the doors

17 Left Front Midrange Speaker (R103)/Right Front Midrange Speaker (R104)

• In the instrument panel on the left and right side

18 Auxiliary Speaker, Telematics (R91)

• In driver's side storage compartment

19 Instrument Cluster Display

• In instrument panel
