3-Position Relay Carrier

3-Position Relay Carrier

Removing

CAUTION!
• Switch off all electrical consumers.

• Switch ignition off and remove ignition key.

- Where applicable, remove driver's storage compartment.

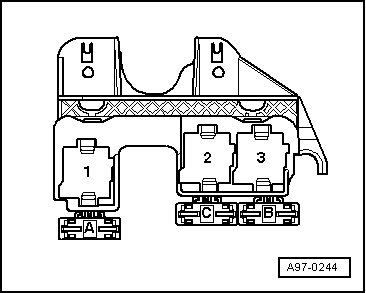

- Remove screws - 1 - and detach 3-position relay carrier - 2 -.





• Disregard - 3 - and - 4 -.

- Unclip the fuse carriers at the 3-position relay carrier.

- Remove relays and control modules and then unclip appropriate relay carrier.

• Refer to the applicable wiring diagram for exact identification of connections on relay carrier => Wiring Diagrams.





Installing

Install in reverse order of removal, noting the following:

- Install driver's storage compartment.

Tightening Specifications
