Plenum Chamber E-Box Fan

Relay and Fuse Panels

CAUTION!
Before beginning repairs on the electrical system:

• Obtain the anti-theft radio security code.

• Switch the ignition off.

• Disconnect the battery Ground (GND) strap.

• After reconnecting vehicle battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Information and/or Owner's Manual.

• Steps after reconnecting voltage supply => Battery.

Plenum Chamber E-Box Fan

• E-box plenum chamber may be equipped with a fan motor, depending on vehicle equipment.

Removing

- Remove E-box plenum chamber => [ Plenum Chamber E-Box ].

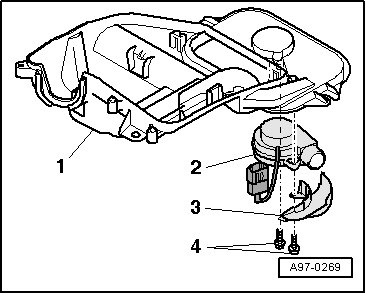

- Remove bolts - 4 - and detach fan - 2 - with air duct - 3 -.





Installing

Installation is the reverse of removal.

Tightening Specifications
