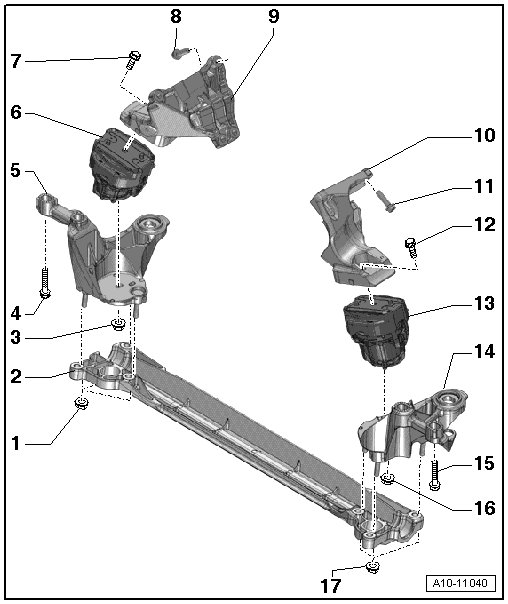

Subframe Mount Assembly Overview

Subframe Mount Assembly Overview





1 Nut

2 Cross member


3 40 Nm

• Self-locking

• Replace

4 75 Nm

5 Right engine mount bracket

6 Engine mount, right

• With the Right Electro-Hydraulic Engine Mount Solenoid Valve (N145)

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Left and Right Engine Mounts

7 40 Nm

8 40 Nm

9 Right engine support

• Illustration does not correspond to version in vehicle

10 Left engine support

• Illustration does not correspond to version in vehicle

11 40 Nm

12 40 Nm

13 Engine mount, left

• With the Left Electro-Hydraulic Engine Mount Solenoid Valve (N144)

• Removing and installing, refer to => [ Left and Right Engine Mounts ] Left and Right Engine Mounts

14 Left engine mount bracket

15 75 Nm

16 40 Nm

• Self-locking

• Replace

17 Nut
