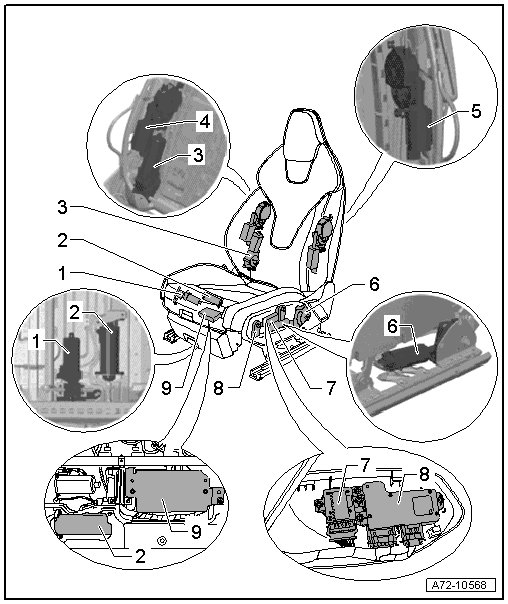

Electrical Components Assembly Overview

Electrical Components Assembly Overview





1 Angle Adjustment Motor

• Driver side (V243)

• Passenger side (V244)

• Assembly overview, refer to => [ Front Seat Angle Adjustment Motors Assembly Overview ] Front Seat Angle Adjustment Motors Assembly Overview

• Removing and installing, refer to => [ Front Seat Angle Adjustment Motors ] Power Front Memory Seats

2 Seat Forward/Back Adjustment Motor (V288)

• Assembly overview, refer to => [ Seat Forward/Back Adjustment Motor Assembly Overview ] Seat Forward/Back Adjustment Motor Assembly Overview

• Removing and installing, refer to => [ Seat Forward/Back Adjustment Motor ] Power Front Memory Seats

3 Backrest Adjustment Motor

• Driver side (V45)

• Passenger side (V46)

• Assembly overview, refer to => [ Front Seat Backrest Adjustment Motors Assembly Overview ] Front Seat Backrest Adjustment Motors Assembly Overview

• Removing and installing, refer to => [ Front Seat Backrest Adjustment Motors ] Power Front Memory Seats

4 Lumbar Support Height Adjustment Motor

• Driver side (V125)

• Passenger side (V126)

• Assembly overview, refer to => [ Lumbar Support Curvature and Height Adjustment Motors Assembly Overview ] Power Front Memory Seats

• Removing and installing, refer to => [ Lumbar Support Height Adjustment Motors ] Power Front Memory Seats

5 Lumbar support curvature adjustment motor

• Driver side (V129)

• Passenger side (V130)

• Assembly overview, refer to => [ Lumbar Support Curvature and Height Adjustment Motors Assembly Overview ] Power Front Memory Seats

• Removing and installing, refer to => [ Lumbar Support Curvature Adjustment Motors ] Power Front Memory Seats

6 Height Adjustment Motor

• Driver side (V245)

• Passenger side (V246)

• Assembly overview, refer to => [ Height Adjustment Motor Assembly Overview ] Height Adjustment Motor Assembly Overview

• Removing and installing, refer to => [ Driver and Front Passenger Height Adjustment Motors ] Power Front Memory Seats

7 Lumbar Support Adjustment Switch

• Driver side (E176)

• Passenger side (E177)

• Assembly overview, refer to => [ Lumbar Support Adjustment Switches Assembly Overview ] Lumbar Support Adjustment Switches Assembly Overview

• Removing and installing, refer to => [ Lumbar Support Adjustment Switches ] Power Front Memory Seats

8 Button

• Seat forward/back adjustment (E418)

• Backrest adjustment (E425)

• Inclination adjustment (E421)

• Seat height adjustment (E424)

• All buttons listed are combined in a single housing and cannot be replaced individually.

• Assembly overview, refer to => [ Seat Adjustment Buttons Assembly Overview ] Seat Adjustment Buttons Assembly Overview

• Removing and installing, refer to => [ Seat Adjustment Buttons ] Power Front Memory Seats

9 Control Module

• Seat adjustment and steering column adjustment with memory function (J136)

• Passenger seat adjustment with memory function (J521)

• Assembly overview, refer to => [ Memory Seat/Steering Column Adjustment Control Module or Passenger Memory Seat Control Module Assembly Overview ] Memory Seat/Steering Column Adjustment Control Module or Passenger Memory Seat Control Module Assembly Overview

• Removing and installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module or Passenger Memory Seat Control Module ] Power Front Memory Seats
