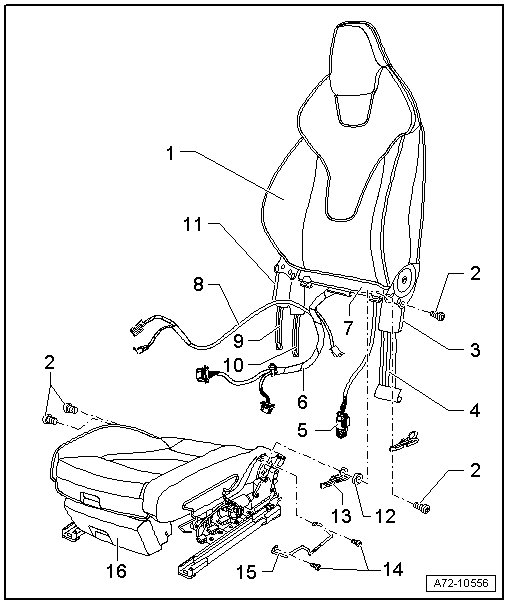

Front Backrest Assembly Overview

Front Backrest Assembly Overview





1 Front Backrest

• Removing and installing, refer to => [ Front Backrest ] Power Front Memory Seats

2 Screw

Self-locking

• 35 Nm

• Quantity: 4

• Replace

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

3 Retaining Strip

• Securing on rear tunnel side trim panel

4 Belt Webbing

• Engaged with strap in seat pan upper frame

5 Wiring Harness

• For side airbag

6 Wiring Harness

7 Cover Strips

• With straps (quantity: 3) for engaging in backrest

8 Wiring Harness

9 Belt Webbing

• engaged with clip in seat pan upper frame

10 Belt webbing

• Engaged with clip in seat pan upper frame

11 Retaining Strip

• Attachment on tunnel side trim

12 Spacer Plate

• Between backrest stop and upper retaining bracket

13 Upper Retaining Bracket

• Removing and installing, refer to => [ Upper Retaining Bracket ] Power Front Memory Seats

14 Bolt

• 3.5 Nm

• Quantity: 2

15 Front Retaining Bracket

• Removing and installing, refer to => [ Front Retaining Bracket ] Power Front Memory Seats

16 Lower Seat Frame
