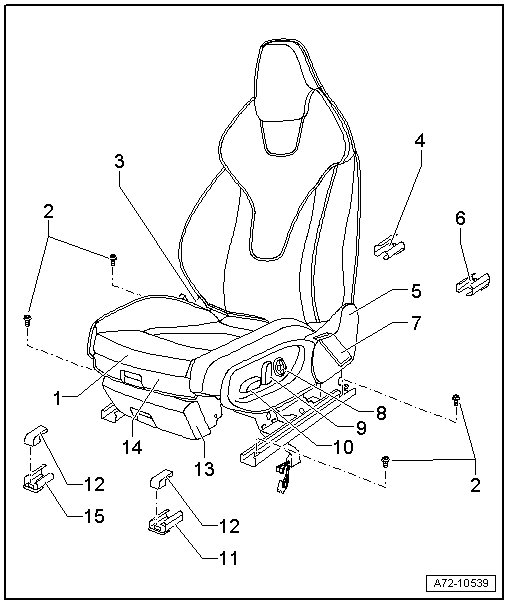

Front Seat Assembly Overview

Front Seat Assembly Overview

• The overview is based on the driver's seat. The passenger's seat is similar and the components are installed reversed from left to right.

• The floor covering was not shown in the illustration for clarity reasons.





1 Front Seat

• Removing and installing, refer to => [ Front Seat ] Power Front Memory Seats

2 Bolt

• 50 Nm

• Quantity: 4

3 Trim

• Tunnel side

• Removing and installing, refer to => [ Tunnel-Side Trim ] Power Front Memory Seats

4 Seat Rail Cover

• Right rear

• Removing and installing, refer to => [ Seat Rail and Spindle Covers ] Power Front Memory Seats

5 Face Plates

• Sill side

• Removing and installing, refer to => [ Sill Side Trim and Assembly Cover ] Power Front Memory Seats

6 Seat Rail Cover

• Left rear

• Removing and installing, refer to => [ Seat Rail and Spindle Covers ] Power Front Memory Seats

7 Assembly cover

• Clipped in

• Removing and installing, refer to => [ Sill Side Trim and Assembly Cover ] Power Front Memory Seats

8 Driver Seat Lumbar Support Adjustment Switch (E176) or (E177)

• Removing and installing, refer to => [ Lumbar Support Adjustment Switches ] Power Front Memory Seats

• Four-way lumbar support, removing and installing => [ Four-Way Lumbar Support ] Power Front Memory Seats

9 Actuator

• for Backrest Adjustment Button (E425)

• Actuator, removing and installing, refer to => [ Backrest Adjustment Actuator ] Power Front Memory Seats

• Removing and installing, refer to => [ Seat Adjustment Buttons ] Power Front Memory Seats

10 Actuator

• For the seat forward/back adjustment button (E418)

• For Inclination Adjustment Button (E421)

• For Seat Height Adjustment Button (E424)

• Actuator, removing and installing, refer to => [ Seat Adjustment Actuator ] Power Front Memory Seats

• Button, removing and installing, refer to => [ Seat Adjustment Buttons ] Power Front Memory Seats

11 Seat Rail Cover

• left front

• Removing and installing, refer to => [ Seat Rail and Spindle Covers ] Power Front Memory Seats

12 Spindle Cover

• clipped into seat rails at left and right front

• Removing and installing, refer to => [ Seat Rail and Spindle Covers ] Power Front Memory Seats

13 Drawer or Storage Compartment

• Drawer, removing and installing, refer to => [ Drawer, through 06.2006 ] Standard Front Seats

• Storage compartment, removing and installing, refer to => [ Storage Compartment ] Standard Front Seats

14 Seat Cushion Extension

• Removing and installing, refer to => [ Seat Cushion Extension ] Power Front Memory Seats

15 Seat Rail Cover

• Right front

• Removing and installing, refer to => [ Seat Rail and Spindle Covers ] Power Front Memory Seats
