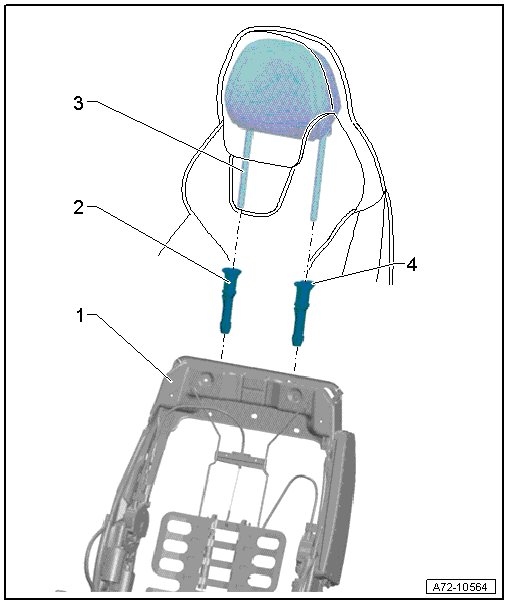

Headrests Assembly Overview

Headrests Assembly Overview

• The headrest is a fixed component of the backrest upholstery and can only be removed together with the backrest upholstery.

• It is not possible to separate headrest from backrest upholstery.

• The backrest cover was not shown in the illustration for clarity purposes.





1 Backrest Frame

2 Headrest Guide without Release Button

• Removing and installing, refer to => [ Headrest Guide ] Power Front Memory Seats

• always installed on right side of backrest

3 Headrest with Upholstery

• Headrest laid in foam in upholstery

• Removing and installing, refer to => [ Upholstery with Headrest with Locking Mechanism ] Power Front Memory Seats

4 Headrest Guide with Release Button

• Removing and installing, refer to => [ Headrest Guide ] Power Front Memory Seats

• always installed on left side of backrest

5 Side Airbag

• Removing and installing, refer to => [ Side Airbags ] Side Airbags
