Engine Oil: Service and Repair

Engine Oil Change

WARNING: Oil extraction not permitted with various engine types!

Note:
- Perform oil change at operating temperature.

Special tools and workshop equipment required

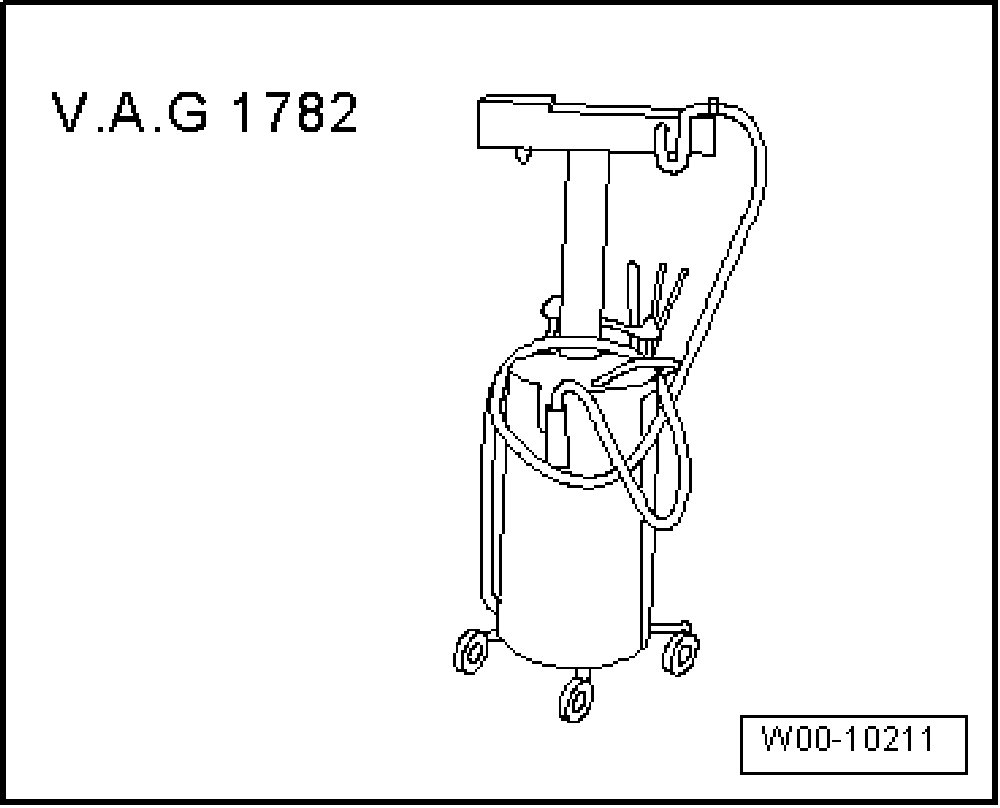

- Oil Extractor -1782-
- Tension Band -2171-1-

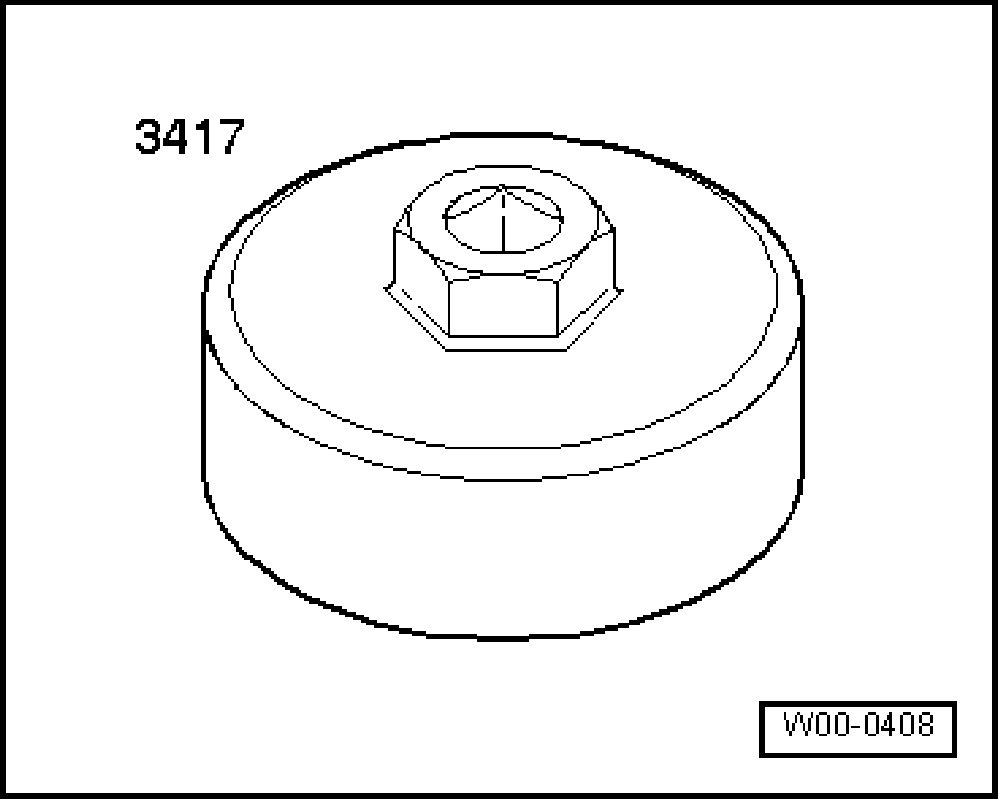

- Oil Filter Key -3417-

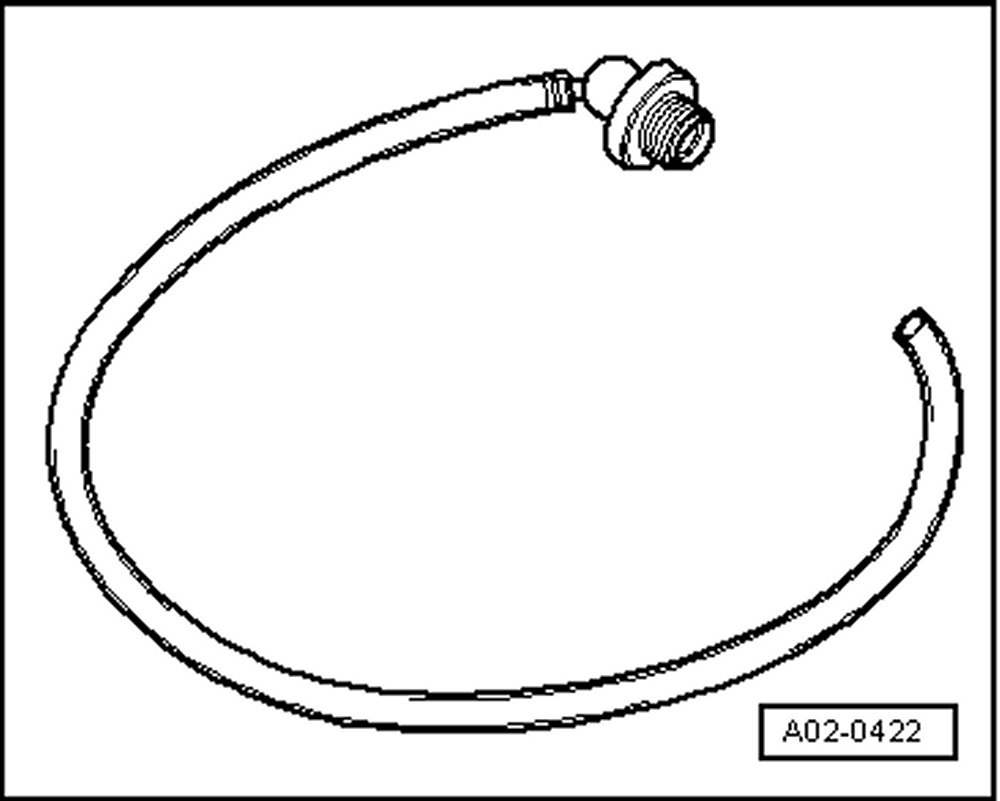

- Oil Drain Adapter -T 40057- (2.0 TFSI)

Note:
- Observe waste disposal regulations!

5.2L FSI

- Remove noise insulation. Service and Repair
- Open oil drain plug and drain engine oil.
- Install oil drain plug with new gasket.

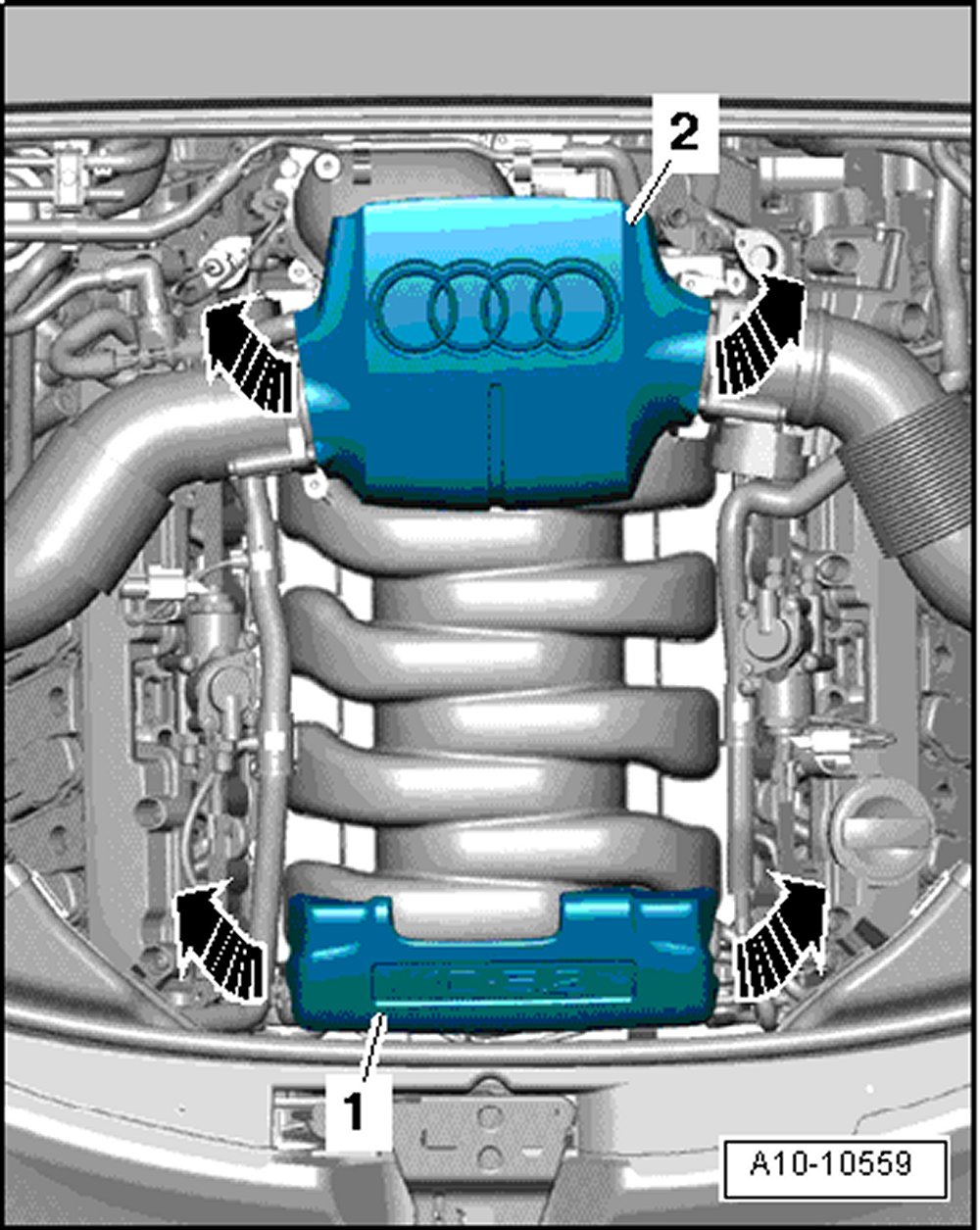

- Remove rear engine cover -2- -arrows-.
- Remove EVAP valve from bracket and lay aside.

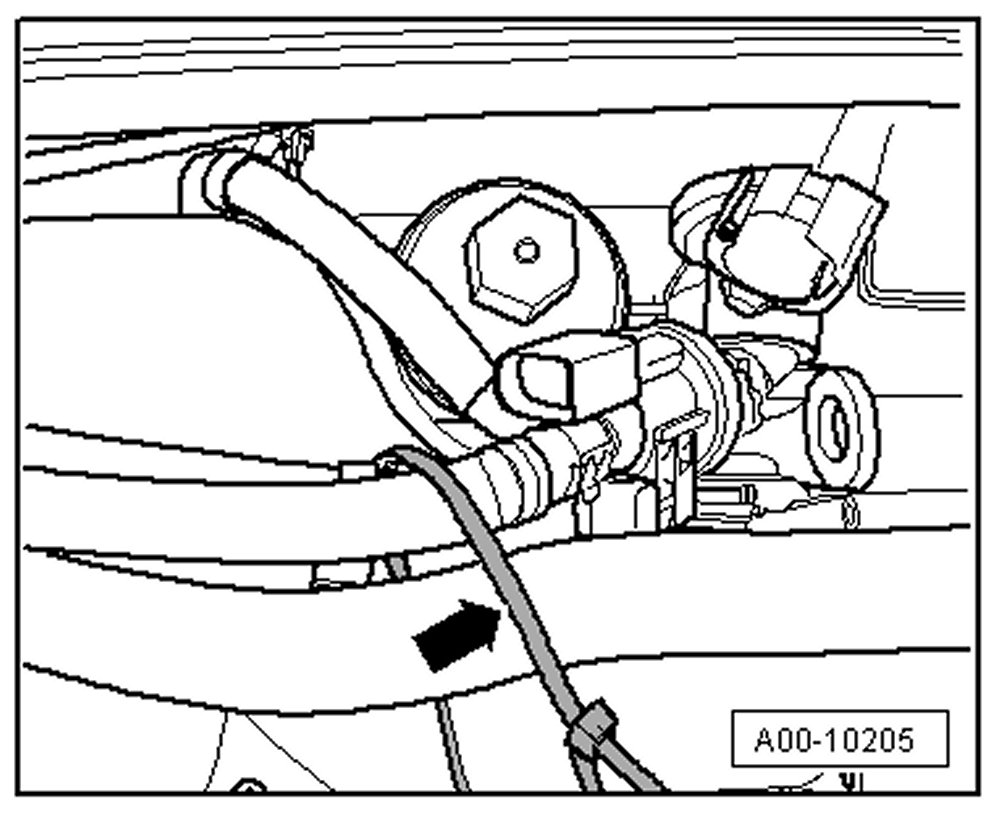

- Secure EVAP line, permanent ventilation line and sound pipe line at front with cable ties.

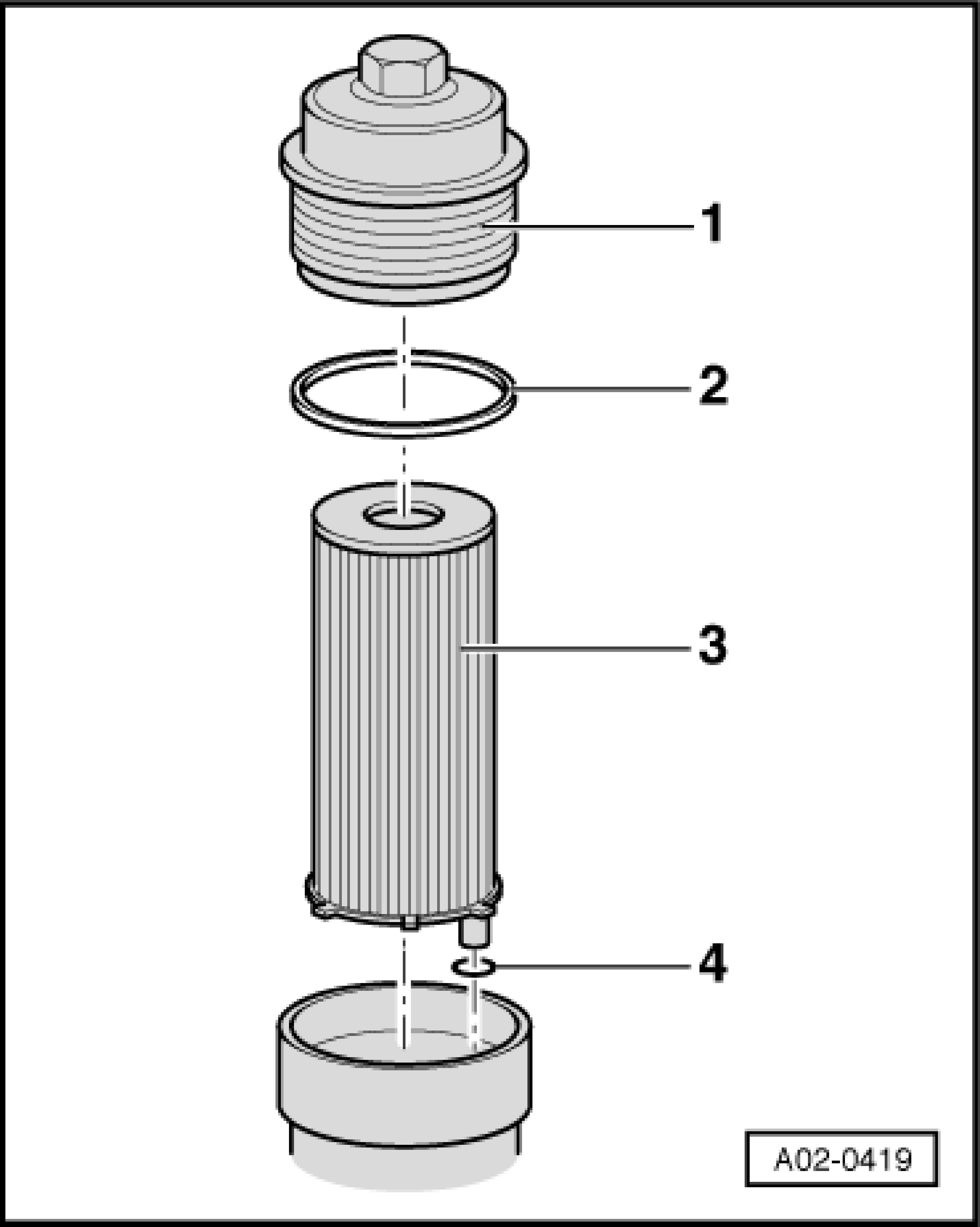

- Loosen cover -1- AF 32.
- Remove filter component -3-.
- Replace O-ring -2- and -4- and filter element -3-.

Observe installation position of tab on oil filter.

- Fill with engine oil.

Note:
- Observe waste disposal regulations!

Tightening Specifications
Oil filter cover 25 Nm
Oil drain plug 25 Nm
