Selector Lever Sensor System Control Module with Tiptronic Switch

Selector Lever Sensor System Control Module with Tiptronic Switch

• The selector lever sensor system control module (J587) and the tiptronic switch (F189) are a single component.

• Tiptronic switch (F189) magnets are secured to cover.

Removing

- Remove the handle on the selector lever. Refer to => [ Selector Lever Handle ] 09EA Automatic Transmission.

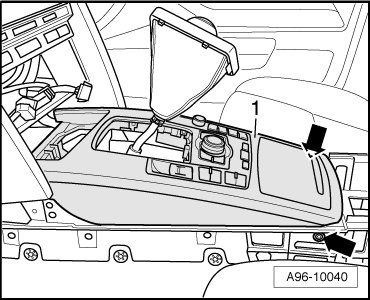

- Remove the front center console - 1 -.





- Disconnect the connector - 1 -.

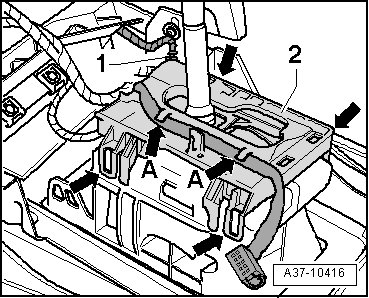

- Open the four tabs - arrows - and remove the selector lever sensor system control module and tiptronic switch upward.

Installing

Install in reverse order, paying attention to the following:

- Install the selector lever sensor system control module with the tiptronic switch into the four tabs - arrows -.

- Attach the wire to the selector lever transmission range position display unit (Y26) - arrows -.

- Install front center console.

- Install the handle on the selector lever. Refer to => [ Selector Lever Handle ] 09EA Automatic Transmission.
