Camshaft Position Sensor: Testing and Inspection

Camshaft Position Sensor, Checking

• Use only gold-plated terminals when servicing terminals in harness connector of Camshaft Position (CMP) Sensor (G40).

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Engine Control Module (ECM) ( J623) fuses OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position " P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ General Diagnosis ] General Diagnosis.

- Remove engine cover - arrows -.





Start diagnosis

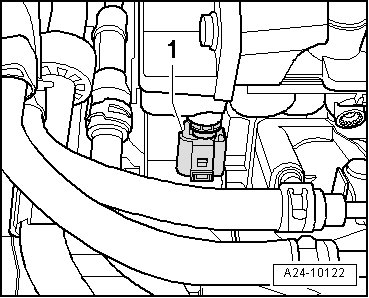

- Disconnect the Camshaft Position (CMP) Sensor ( G40) electrical harness connector - 1 -.





- Switch the ignition on.

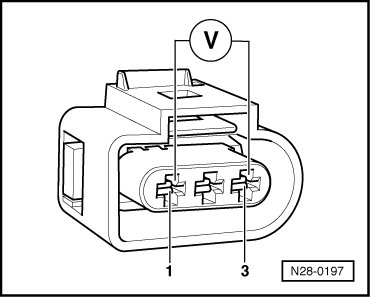

- Using a Multimeter, Check the Camshaft Position (CMP) Sensor (G40) electrical harness connector terminals 1 to 3 for voltage.





Specified value: about 5.0 V

- Switch the ignition off.

If the specification was not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. Refer to Fuel Injection and Ignition Repair Information

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) (J623). Refer to => [ Engine Control Module, Replacing ] Service and Repair.

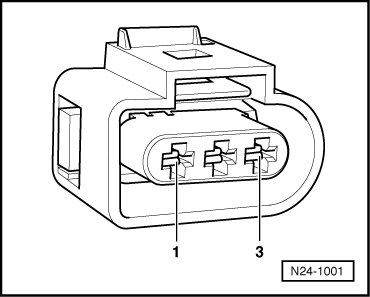

- Using a Multimeter, Check the Camshaft Position (CMP) Sensor (G40) electrical harness connector to the Engine Control Module (ECM) electrical harness connector T60 for resistance.









Specified value: 1.5 ohms Max.

If the specified value was not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

- Check the wiring connection for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:

- Replace the Camshaft Position (CMP) Sensor (G40 ). Refer to Fuel Injection and Ignition Repair Information.

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

- End of diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was not OK:

- Replace the Engine Control Module (ECM) (J623 ). Refer to => [ Engine Control Module, Replacing ] Service and Repair.

- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the mentioned sequence:

1. Check the DTC memory. => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

End of diagnosis
