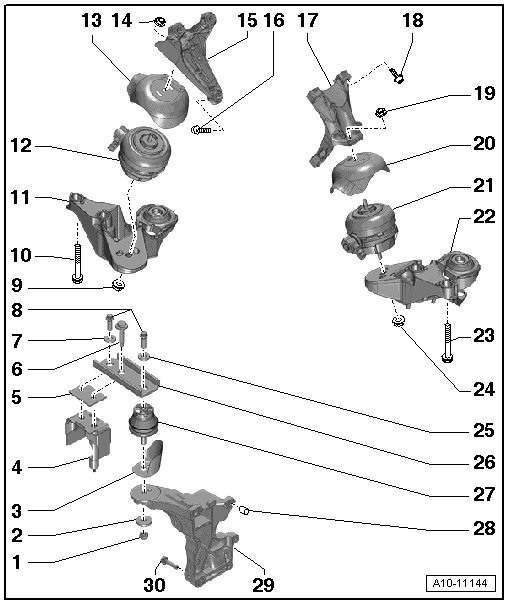

Subframe Mount Assembly Overview

Subframe Mount Assembly Overview





1 46 Nm

2 Washer

3 Heat shield

• For torque bracket

4 Torque support bracket

5 Balance plate

6 50 Nm plus an additional 90°

• Replace

7 Washer

8 40 Nm

9 23 Nm

10 75 Nm

11 Right engine mount bracket

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

12 Engine mount, right

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

13 Heat shield

• For the right engine mount

14 23 Nm

15 Right engine support

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

16 40 Nm

17 Left engine support

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

18 40 Nm

19 23 Nm

20 Heat shield

• for the left engine mount

21 Engine mount, left

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

22 Left engine mount console

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

23 75 Nm

24 23 Nm

25 Washer

26 Bracket

• for the torque support mount

27 Torque support bearing

• Removing and installing, refer to => [ Torque Support Bracket ] Torque Support Bracket

28 Alignment bushing

• 2 pieces

29 Torque bracket

• Removing and installing, refer to => [ Torque Support Bracket ] Torque Support Bracket

30 Bolt

• M8: 23 Nm

• M10: 46 Nm
