Starting System: Service and Repair

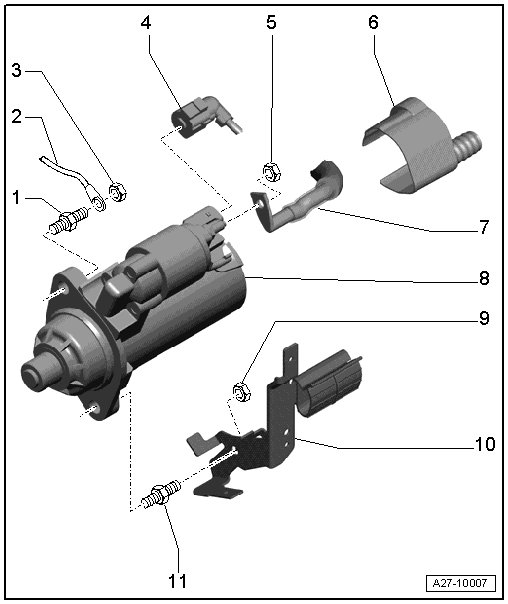

Starter Overview

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Contact Corrosion.






1 Screw

• Tightening Specifications

Audi TT and TTS with manual transmission. Refer to Transmission, Installing in

Audi TT and TTS with DSG transmission 40 Nm.

2 Ground Wire

3 Nut

• 23 Nm

• For ground wire

4 Electrical Connector

5 Nut

• 15 Nm

6 Protective Boot

7 Terminal B+

8 Starter

• Removing and installing:

• Audi TT, 2.0L TFSI engine: Manual transmission, refer to => [ Starter ] Service and Repair; DSG transmission, refer to => [ Starter ] Service and Repair.

• Audi TTS with a 2.0L TFSI engine and a DSG transmission, refer to => [ Starter ] Service and Repair.

• Audi TTRS with a 2.5L TFSI engine and manual transmission, refer to => [ Starter ] Service and Repair.

• Audi TT with a 3.2L MPI engine: for a manual transmission, refer to => [ Starter ] Service and Repair; for a DSG transmission, refer to => [ Starter ] Service and Repair.

9 Nut

• 23 Nm

• For wiring harness bracket

10 Wiring Harness Bracket

11 Screw

• Tightening Specifications

Audi TT and TTS with manual transmission. Refer to Transmission, Installing in

Audi TT with DSG transmission 40 Nm.
