Model Year 2008-Up

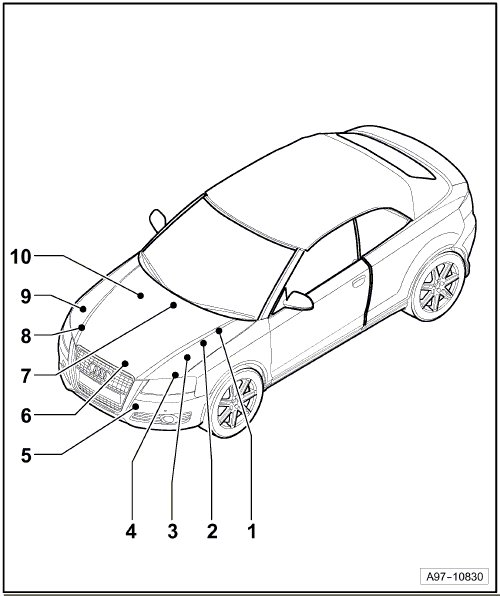

Control modules in front part of vehicle

Overview of Control Modules







1 - Wiper Motor Control Module -J400-
• Component Location => [ ] Locations

2 - Direct Shift Gearbox (DSG) Mechatronic -J743-
• Component Location Direct Shift Gearbox (02E) => [ ] Locations
• Component Location Direct Shift Gearbox (0AM) => [ ] Locations
• Pin Arrangements Direct Shift Gearbox (02E) => [ Pin Arrangements: ] Locations
• Pin Arrangements Direct Shift Gearbox (0AM) => [ Pin Arrangements: ] Locations

3 - Power Steering Control Module -J500-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations

4 - Left High-intensity Gas Discharge Lamp Control Module -J343-
• Component Location => [ / ] High-Intensity Gas Discharge Lamp Control Module Left -J343- / Right -J344-

4 - Left Headlamp Power Output Stage -J667-
• In headlamp

5 - Garage Door Opener Control Module -J530-
• Component Location => [ ] Garage Door Opener Control Module -J530-
• Pin Arrangements => [ Pin Arrangements: ] Garage Door Opener Control Module -J530-

6 - Coolant Fan Control (FC) Control Module -J293-
• Component Location => [ ] Locations

7 - Engine Control Module (ECM) -J623-
• Component Location => [ ] Engine Control Module (ECM) -J623-
• 121-pin, Pin Arrangements => [ 121-pin, Pin Arrangements: ] Engine Control Module (ECM) -J623-
• 154-pin, Pin Arrangements => [ 154-pin, Pin Arrangements: ] Engine Control Module (ECM) -J623-

8 - Right High-intensity Gas Discharge Lamp Control Module -J344-
• Component Location => [ / ] High-Intensity Gas Discharge Lamp Control Module Left -J343- / Right -J344-

8 - Right Headlamp Power Output Stage -J668-
• In headlamp

9 - Auxiliary Heater Control Module -J364-
• Below right front long member

10 - ABS Control Module -J104-
• Component Location => [ ] ABS Control Module -J104-
• 47-pin, Pin Arrangements => [ Pin Arrangements: ] ABS Control Module -J104-
• 26-pin, Pin Arrangements => [ Pin Arrangements: ] ABS Control Module -J104-
