Model Year 2007-Up
Control Modules in Interior of Vehicle

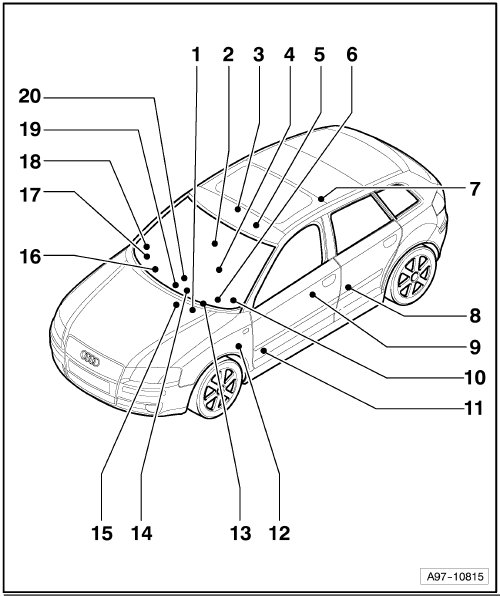

Overview of Control Modules
1 - Headlamp Range Control Module -J431-
• Component Location => [ ] Range Control Module -J431-
• Pin Arrangements => [ Pin Arrangements: ] Range Control Module -J431-
2 - Front Passenger's Heated Seat Control Module -J727-
• Component Location => [ ] Front Pass Heated Seat Control Module -J727-
• Pin Arrangements => [ Pin Arrangements: ] Front Pass Heated Seat Control Module -J727-
• Not for models with US equipment
2 - Electronic Damping Control Module -J250-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
3 - Power Sunroof Control Module -J245-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
4 - NOX Sensor Control Module -J583-
• Component Location => [ ] Locations
• Not for models with US equipment
5 - Left Rear Door Control Module -J388-
• Component Location => [ / ] LR Door Control Module -J388- / RR Door Control Module -J389-
• Pin Arrangements => [ Pin Arrangements: ] LR Door Control Module -J388- / RR Door Control Module -J389-
• Only 5-door models
6 - Instrument Cluster Control Module -J285-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
7 - Fuel Pump (FP) Control Module -J538-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
8 - Right Rear Door Control Module -J389-
• Component Location => [ / ] LR Door Control Module -J388- / RR Door Control Module -J389-
• Pin Arrangements => [ Pin Arrangements: ] LR Door Control Module -J388- / RR Door Control Module -J389-
• Only 5-door models
9 - Driver's Heated Seat Control Module -J726-
• Component Location => [ ] Driver's Heated Seat Control Module -J726-
• Pin Arrangements => [ Pin Arrangements: ] Driver's Heated Seat Control Module -J726-
• Not for models with US equipment
9 - Voltage Stabilizer -J532-
• Component Location => [ ] Voltage Stabilizer -J532-
• Pin Arrangements => [ Pin Arrangements: ] Voltage Stabilizer -J532-
• Not for models with US equipment
10 - Steering Column Electronic Systems Control Module -J527-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
11 - Driver's Door Control Module -J386-
• Component Location => [ ] Driver's Door Control Module -J386-
• Pin Arrangements => [ Pin Arrangements: ] Driver's Door Control Module -J386-
12 - Vehicle Electrical System Control Module -J519-
• Component Location from model year 2004 => [ ] Vehicle Electrical System Control Module -J519-
• Component Location from model year 2010 => [ ] Vehicle Electrical System Control Module -J519-
• Pin Arrangements, from model year 2004 => [ Pin Arrangements: ] Vehicle Electrical System Control Module -J519-
• Pin Arrangements, from model year 2010 => [ Pin Arrangements: ] Vehicle Electrical System Control Module -J519-
13 - Heater Control Module -J65- /Heater Control Module -J162-
• Component Location => [ / ] Heater Control Module -J65- / Heater Control Module -J162-
13 - Climatronic Control Module -J255-
• Component Location => [ ] Climatronic (Automatic Climate Control) Control Module -J255-
• Pin Arrangements => [ Pin Arrangements: ] Climatronic (Automatic Climate Control) Control Module -J255-
13 - A/C Control Module -J301-
• In the center console
• Not for models with US equipment
14 - Auxiliary Air Heater Control Module -J604-
• Not for models with US equipment
15 - Data Bus On Board Diagnostic Interface -J533-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
16 - CD Changer -R41-
• Component Location => [ ] Locations
16 - Tire Pressure Monitoring Control Module -J502-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
16 - Inclination-/Anti-Theft Control Module -J529-
• Component Location => [ ] Locations
16 - External Audio Source Connector -R199-
• Component Location => [ ] Locations
• Pin Arrangements => [ ] Locations
17 - Fresh Air Blower Control Module -J126-
• Component Location => [ ] Fresh Air Blower Control Module -J126-
18 - Front Passenger's Door Control Module -J387-
• Component Location => [ ] Front Pass Door Control Module -J387-
• Pin Arrangements => [ Pin Arrangements: ] Front Pass Door Control Module -J387-
19 - Airbag Control Module -J234-
• Component Location => [ ] Locations
• 75-pin, Pin Arrangements => [ Pin Arrangements: ] Locations
• 84-pin, Pin Arrangements => [ Pin Arrangements: ] Locations
• 100-pin, Pin Arrangements => [ Pin Arrangements: ] Locations
20 - Radio -R- / Radio/Navigation Display Control Module -J503-
• Component Location => [ / (RNS-Low) ] Radio -R- / Radio / Navigation Display Control Module -J503- (RNS-Low)
20 - Navigation System Operating Electronics Control Module -J402-
• Component Location => [ (RNS-E) ] Nav System Operating Electronics Control Module -J402- (RNS-E)
